110-036-103L001

NORCOMP  110-036-103L001  输入输出连接器, 110系列, 并行口, 插头, 36 触点, 焊接, 电缆安装

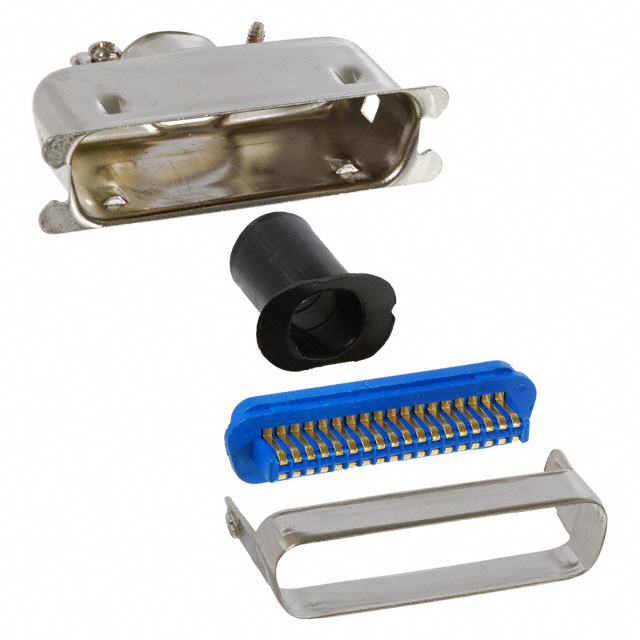

The 110 series 0.085-inch Ribbon Type Connector/Backshell Kit accepts wide variety of cable types. It has nickel-plated steel shell with copper alloy contacts and a glass-filled thermoplastic insulator.

.

D-shape polarized mating face

.

Rugged design and quick release have proven effective in areas of repeatable cycling

.

5A Contact current rating

.

1000MR at 500VDC Minimum insulation resistance

.

30mR Maximum contact resistance

.

-55 to 125°C Operating temperature range

.

UL94V-0 Flammability rating
