1970130000

WEIDMULLER  1970130000  插拔式接线端子, 10 路, 320 V, 17.5 A, 3.81 mm, 26 AWG, 16 AWG

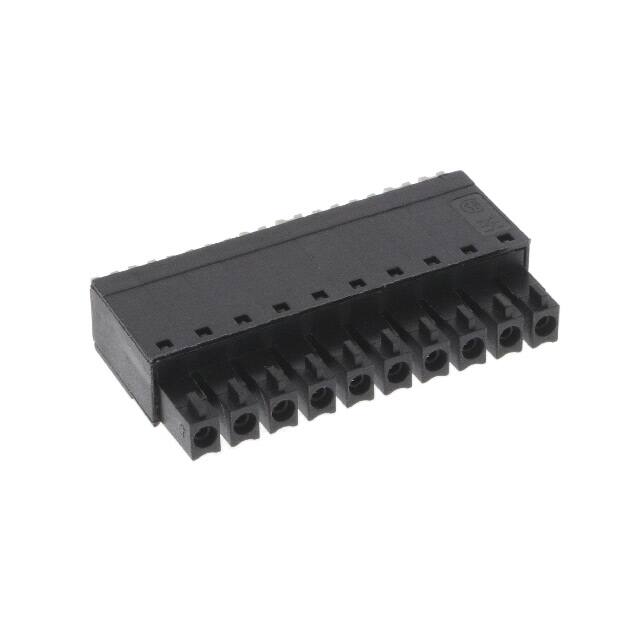

The is a 10-pole black female PCB Plug-in Connector with push-in connection. The BCF 3.81/10/180 SN BK BX connector has tinned Cu-leg contact and a glass-filled 30 polyamide 66 insulator. Weidmüllers innovative connection system simplifies the wire connection process. It has high component density with the compact SCDN/SCDN-THR two-tier pin header and simplified processing due to integrated push buttons for opening the clamping unit. Intuitive handling - since the wire-entry area and handling area are clearly separated. Tool-free locking and releasing when using Weidmüllers patented release latch LR. The Weidmüller plug-in connector having pitch 3.81mm is compatible with the layout of customary plug-in connectors, can be coded and provides space for printing.

.

Safe from finger touch

.

>=10⁸R Insulation resistance

.

6mR Volume resistance

.

IP20 Protection

.

DIN 5264 Standard screwdriver blade

.

UL94V-0 Flammability

.

-50 to 120°C Operating temperature range
