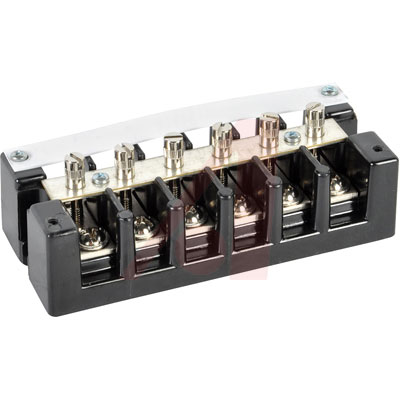

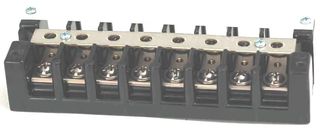

MARATHON 1506SC 端子排
Specifications:
* Base, General Purpose Phenolic, 150°
C UL RTI
* Connector, Brass, Nickel Plated
* Phil-Slot Screws standard slotted screws also
available, Brass, Nickel Plated, 10-32
* Current rated up to 30 Amps with unprepared
wire, #10-22 AWG Copper
* Current rated up to 75 Amps when wired with
crimp type ring, spade or fork terminal
* 5/8" .625" Line To Line Spacing
e络盟:
端子排
Allied Electronics:
Conn; Term Blk; 6 Pole; .625 Pitch; 22-10 AWG; 30 A; 600 V; Short Circuit Bar
Newark:
# MARATHON 1506SC Panel Mount Barrier Terminal Block, 2 Row, 6 Positions, 22 AWG, 10 AWG, 15.88 mm, 75 A
MASTER:
Conn Heavy Duty Terminal Blocks 12 POS 15.88mm Screw Panel Mount 75A
Electro Sonic:
Conn Heavy Duty Terminal Blocks 12 POS 15.88mm Screw Panel Mount 75A
