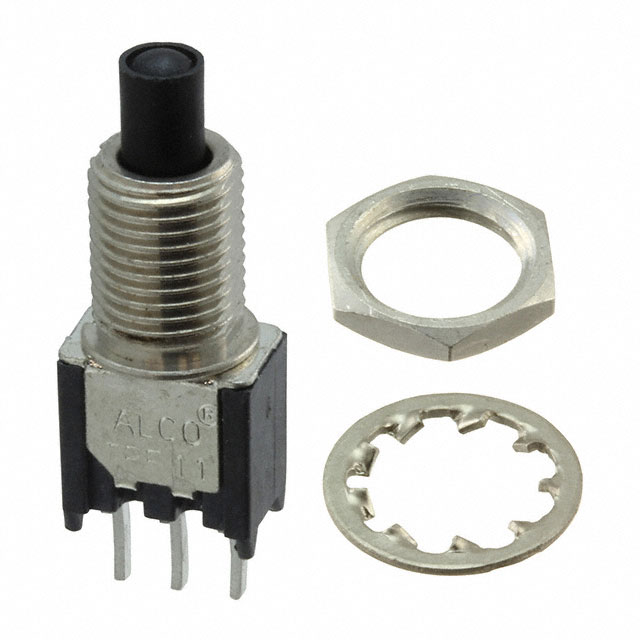

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Panel Mount/Through Hole PC Pins Bulk
按钮 SPDT 标准 面板安装，后部
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Bulk
安富利:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Panel Mount/Through Hole PC Pins Bulk
MASTER:
PUSHBUTTON SWITCH, TPF SERIES
Powell:
Pushbutton Switches
Online Components:
TPF11FGPC004
Win Source:
SWITCH PUSHBUTTON SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Panel Mount, Rear
触点电镀 Gold over Nickel, Gold
额定电压DC 20 V
额定电压AC 20 V
触点类型 SPDT
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压 20 VDC
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 Polyester
长度 8.13 mm
宽度 7.14 mm
高度 21.06 mm
封装 Polyester
触点材质 Copper Alloy
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509031
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1825100-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
TPF11FGPC0 泰科 | 完全替代 | 1825100-7和TPF11FGPC0的区别 |
