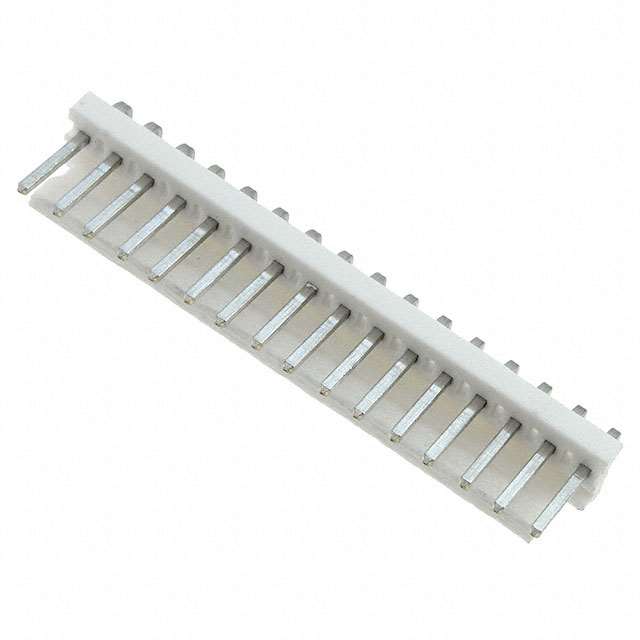

1-640387-6

Conn Wire to Board HDR 16POS 3.96mm Solder RA Thru-Hole

针座 通孔，直角 16 位置 0.156"（3.96mm）

得捷:
CONN HEADER R/A 16POS 3.96MM

艾睿:
Mount this wire to board 1-640387-6 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 16 contacts that are made out of copper alloy and plated with tin. Its pitch is 3.96 mm. It has a maximum voltage rating of 600 VAC. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 7 A/contact. 1-640387-6 is housed in white polyester. It uses the solder termination method. This product is 63.4 mm long, 7.62 mm tall and 17.32 mm deep.

安富利:
Conn Wire to Board HDR 16 POS 3.96mm Solder RA Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 16 POS 3.96mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 16 POS 3.96mm Solder RA Thru-Hole Automotive

Newark:
# AMP - TE CONNECTIVITY  1-640387-6  16P MTA156 HDR ASSY SQ R/A

MASTER:
16P MTA156 HDR ASSY SQ R/A

Online Components:
16P MTA156 HDR ASSY SQ R/A

Electro Sonic:
16P MTA156 HDR ASSY SQ R/A
