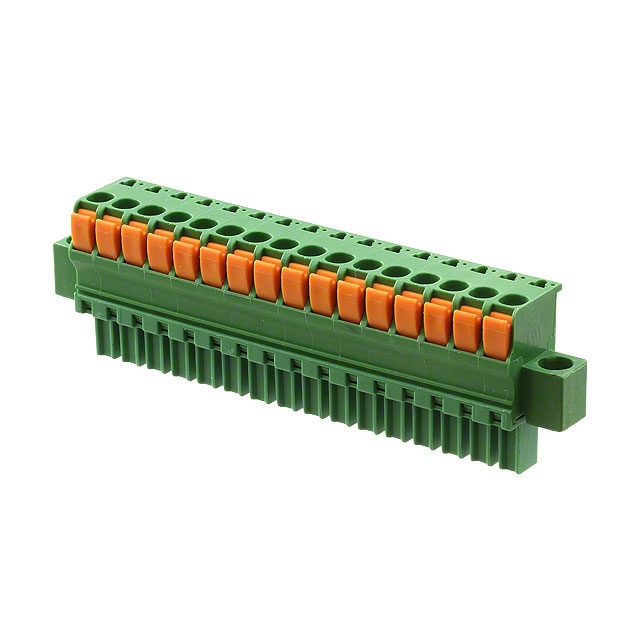

Conn Terminal Block F 16POS 3.81mm ST Cable Mount 11A/Contact Box
Str Plug Spring Type LH, FL, 16P, 3.81
得捷:
TERM BLOCK PLUG 16POS STR 3.81MM
艾睿:
Conn Terminal Block F 16 POS 3.81mm ST Cable Mount 11A/Contact Box
Verical:
Conn Terminal Block F 16 POS 3.81mm ST Cable Mount 11A/Contact Box
MASTER:
Conn Terminal Block F 16 POS 3.81mm ST Cable Mount 11A/Contact Box
Online Components:
Str Plug Spring Type LH, FL, 16P, 3.81
Electro Sonic:
Conn Terminal Block F 16 POS 3.81mm ST Cable Mount 11A/Contact Box
触点数 16
线规 14AWG ~ 30AWG
触点电镀 Tin, Tin over Copper
绝缘电阻 1000 MΩ
排数 1
电路数 16
针脚数 16
额定电流Max 11A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
工作电压Max 300 VAC
高度 11.65 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -40℃ ~ 110℃
外壳材质 Nylon
产品生命周期 Obsolete
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
