DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
DIP SPST 4 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
艾睿:
Thanks to the 1825140-2 dual in-line package switch from TE Connectivity, you can ensure that there is some type of current flow control within your printed circuit. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1825140-2 DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product is 6.2 mm long, 1.71 mm tall and 8.12 mm deep. This product&s;s terminal pitch is 1.27 mm.
安富利:
Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1.27mm SMD T/R
Chip1Stop:
Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1.27mm SMD T/R
Verical:
Switch DIP OFF ON SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1.27mm SMD T/R
MASTER:

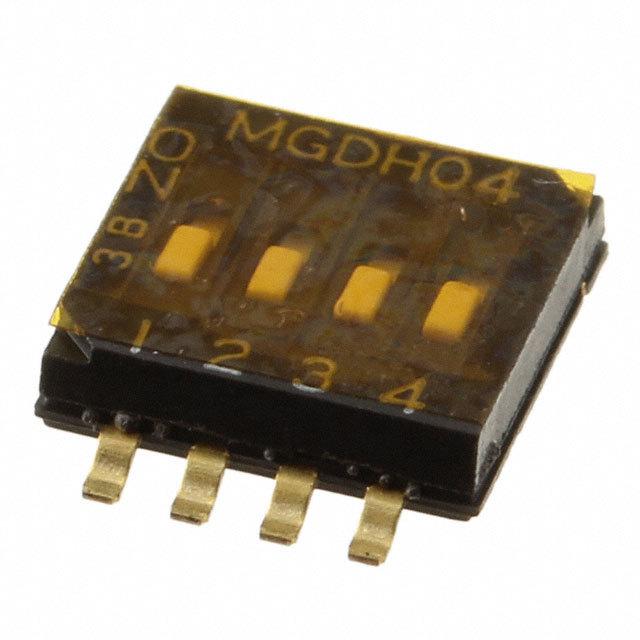

LOW PROFILE DIP SWITCH MGDH04
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
LOW PROFILE DIP SWITCH MGDH04
Electro Sonic:
MGDH04STR04=1/2 PITCH LOW P DIP T&R
Win Source:
SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 4 Position Surface Mount Slide Standard Actuator 25mA 24VDC
触点电镀 Gold, Gold over Nickel
额定电压DC 24 V
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 0.025A @24VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
长度 6.2 mm
宽度 8.12 mm
高度 1.71 mm
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1825140-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
MGDH0404 泰科 | 完全替代 | 1825140-2和MGDH0404的区别 |
1571999-6 泰科 | 类似代替 | 1825140-2和1571999-6的区别 |
1571999-7 泰科 | 类似代替 | 1825140-2和1571999-7的区别 |
