1-435802-5

7000 系列）侧面执行单刀单掷 ### DIL 直通板

钢琴型执行器（7000 系列）

侧面执行单刀单掷

欧时:

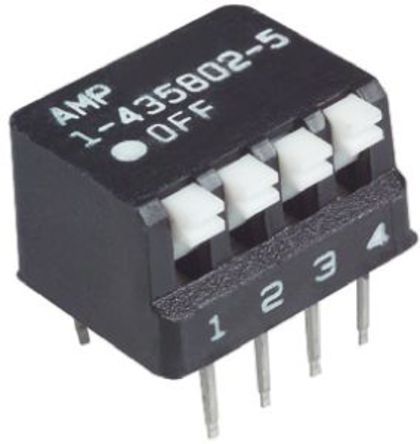

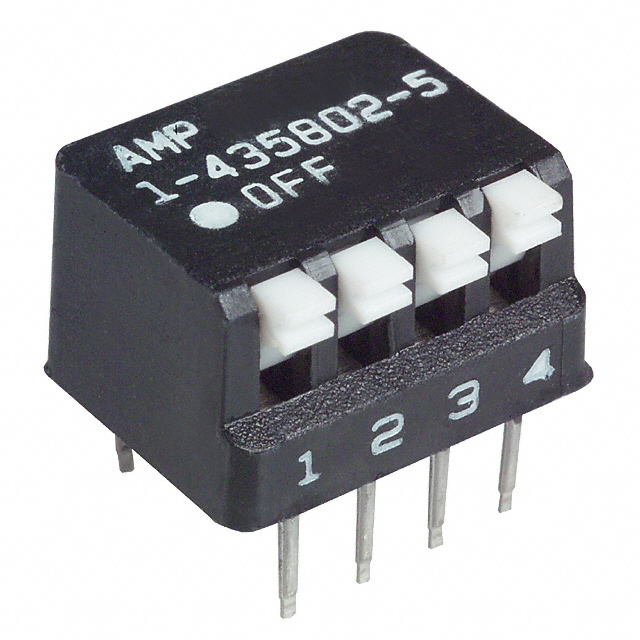

TE Connectivity 1-435802-5 4位置 琴键式 通孔 DIP 开关, 单刀单掷, 100 mA@ 24 V 直流

艾睿:
Look no further! The 1-435802-5 dual in-line package switch, developed by TE Connectivity, can allow you to control multiple different paths on a printed circuit. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has an operating temperature range of -55 °C to 105 °C. The 1-435802-5 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 12.19 mm long, 7.37 mm tall and 9.65 mm deep.

Allied Electronics:
Alcoswitch; DIP switch, PCB, sealed, SPST, 4 pos, piano

安富利:
Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC PC Pins 2.54mm Thru-Hole Box/Tube

MASTER:
SWITCH ASSY, DIP, TYPE C, 7000 SERIES, SPST, SIDE ACTUATED

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Online Components:
RIGHT ANGLE DIP SW 4 P SEALED

Electro Sonic:
RIGHT ANGLE DIP SW 4 P SEALED
