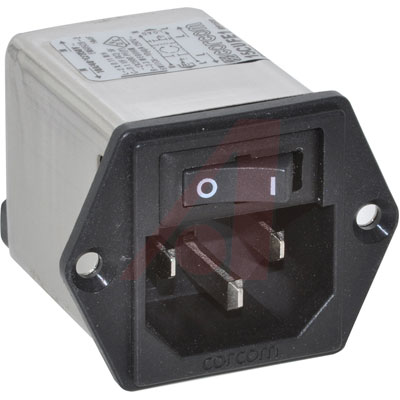

15CUFE1

Power Entry Module EMI/RFI Filtered PL 3POS 250VAC 15A Switch ST 1Port

The CU Series joins the Corcom product family of Power Entry Modules, filling the need for smaller versions of our switched inlet filters and unfiltered power inlets. This Series provides power entry for equipment designed for popular 1U 13⁄4" height equipment racks. The filtered versions provide complete shielding, shrouded quick connect terminals and basic filtering for 1 A to 15 A applications, in an extremely compact size.

The design is available in snap-in and flanged mounting options. Filtered versions are also available in a new rear mount style which provides a flush appearance with enhanced EMI shielding. The unfiltered inlet snap-in versions are available in three different configurations to fit a wide variety of panel cut-outs and thicknesses and with optional pre-connected terminals from the socket to the switch. The CU Series features a common IEC 60320-1 C-14 power inlet for international compatibility. Refer to the C, GG, P, and M Series PEMs for applications requiring additional features.

**Features:**

* Compact 1U 13⁄4" Design*

* 1 A-15 A*

* Filtered and Unfiltered

* SPST Switch

* Shrouded Quick-Connect Terminals

* "Various Mounting Styles

* Lower Power Dissipation

* Higher System Efficiency

* Lower Cooling Demand

* Underwriters Laboratories Recognized, CSA Certified and VDE Approved*

**Specifications:**

* Maximum Leakage Current, Each Line to Ground Filtered Models Only: @ 120 VAC 60 Hz : 0.25 mA and @ 250 VAC 50 Hz: 0.40 mA

* Hipot Rating One Minute: Line-to-Ground 1500 VAC, Line-to-Line 1450 VDC

* Operating Frequency: 50/60 Hz

* Rated Voltage: 250 VAC

* Rated Currents: 1 A, 3 A, 6 A, 10 A, 15 A

* Operating Voltage: 120/250 VAC

* Switch: Single Pole Single Throw

* Terminal Push-on Force: 15 Lbs./67 N Max.
