1013430000

WEIDMULLER  1013430000  插拔式接线端子, 2 路, 300 V, 10 A, 5.08 mm, 26 AWG, 12 AWG

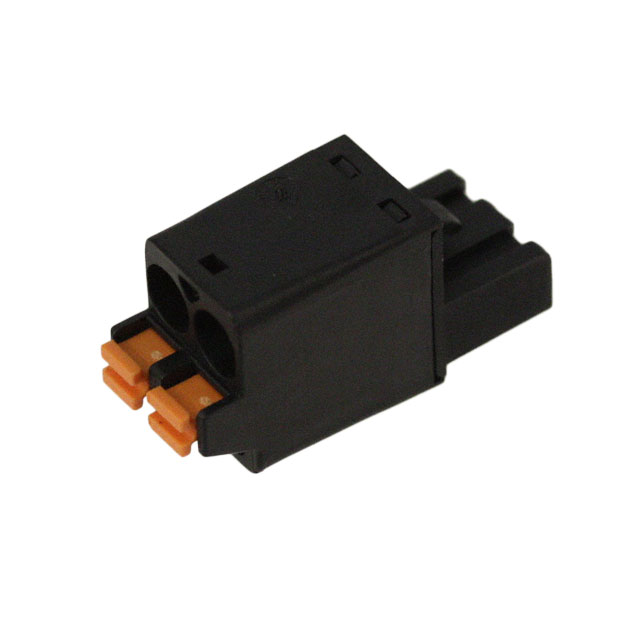

The is a 2-pole black female PCB Plug-in Connector with push-in wire connection. The BLF 5.08HC/02/180 SN BK BX connector has tinned CuSn contact with 4 to 8µm Sn hot-dip tinned layer structure of plug contact and a PBT insulator. The BLF 5.0x - the PUSH-IN version of the BLZ 5.0x socket block features a new connection system and a more compact design. Weidmüllers innovative PUSH-IN spring connection features a trend-setting, tool-free wire connection system that is simple to operate.

.

Safe from finger touch

.

>=10⁸R Insulation resistance

.

4.5mR Volume resistance

.

IP20 Protection

.

UL94V-0 Flammability

.

-50 to 100°C Operating temperature range
