188概述

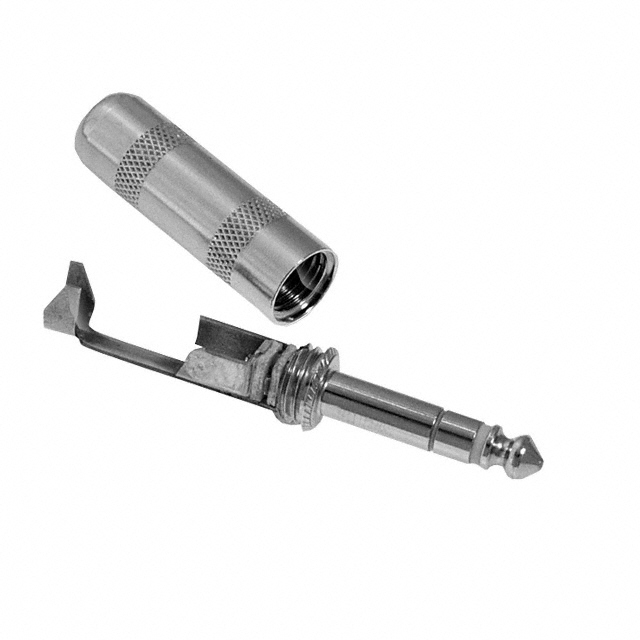

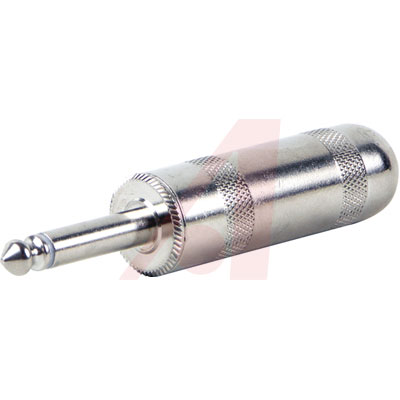

SWITCHCRAFT  188  电话插头

**1/4" Commercial Phone Plugs**

A series of Mono 2 or Stereo 3 conductor 1/4" commercial plug connectors from Switchcraft with a choice of solder or screw terminals.


得捷:
CONN PLUG MONO 6.35MM 2COND


贸泽:
电话连接器 PLUG HEAVY DUTY 1/4"


e络盟:
电话插头


艾睿:
Use the 1/4" mono plug 188 audio and video connector from Switchcraft for your design to run audio and video. This M connector has 2 M contacts. It has a straight body orientation. It has a male type gender. This connector has a single port. It has 2 terminals. This cable has an operating temperature range of -40 °C to 85 °C.


Allied Electronics:
connector, phone plug, 1/4 in, heavy duty, commercial, solder terminal, 2 cond


Chip1Stop:
Conn 1/4" Mono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port


立创商城:
188


Verical:
Conn 1/4\" Mono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port


Newark:
# SWITCHCRAFT  188  Speaker / Loudspeaker Audio Connector, Heavy Duty, 2 Contact, Plug, Cable Mount


MASTER:
Conn 1/4"" Mono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port


Online Components:
Conn 1/4"" Mono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port


Electro Sonic:
Conn 1/4"" Mono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port


188中文资料参数规格
技术参数

触点数 2

极性 Male

触点电镀 Nickel

绝缘电阻 2000 MΩ

针脚数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

接触电阻Max 20 mΩ

封装参数

安装方式 Solder

封装 -

外形尺寸

封装 -

物理参数

颜色 Nickel

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99
