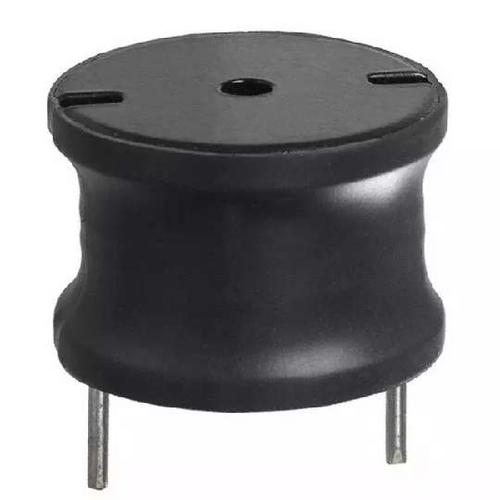

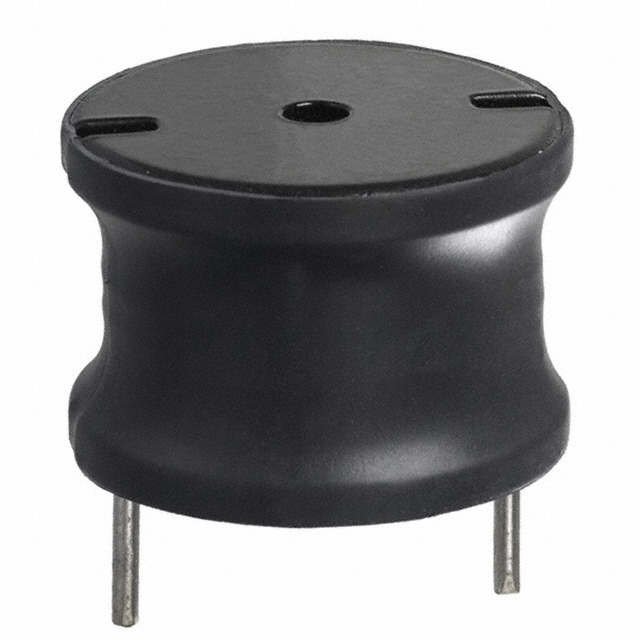

BOURNS JW MILLER 1140-332K-RC 射频扼流圈, 1140系列, 3.3mH 10% 2.8A
If you need a convenient and easily removable inductor for your electrical design then consider this high current rf choke leaded inductor from Bourns. This part has a pitch of 27.94 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 10%. This product is 26.16 mm tall with a diameter of 38.1 mm. This leaded inductor has a maximum DC current of 1.9 A with a maximum resistance of 773m Ohm. It has an inductance of 3.3m H. This device is made with bobbin core technology. Its test frequency is 1K Hz.
额定电流 1.9 A
容差 ±10 %
电感 3.3 mH
电感公差 ±10 %
测试频率 1 kHz
电阻DC） ≤773 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.773 Ω
安装方式 Through Hole
引脚数 2
封装 Radial
长度 1.03 in
高度 26.16 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
