1924540000

WEIDMULLER  1924540000  插拔式接线端子, 2 路, 1 kV, 78 A, 10.16 mm, 22 AWG, 6 AWG

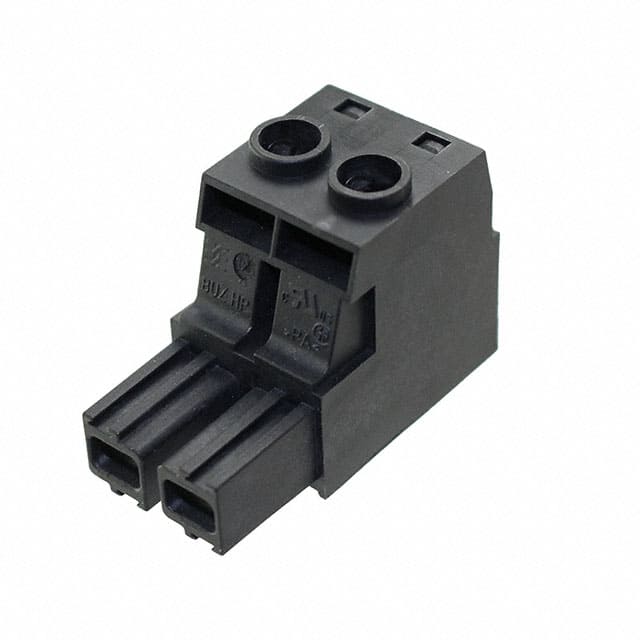

The is a 2-pole black female PCB Plug-in Connector with clamping yoke connection. The BUZ 10.16HP/02/180 AG BK BX connector has silver-plated Cu-leg contact with a 3µm Ag layer structure of plug contact and a glass-filled polyamide insulator. It is a high-performance female header with the proven, 100% maintenance-free Weidmüller steel clamping yoke. Side-by-side mounting without sacrificing any poles or with patented multifunction flange for secure, fast fixing without tools. It has maximum connection and operating reliability and mating profile that prevents incorrect connection, unique coding diversity, protection against incorrect wiring and 4-point silver contact.

.

Safe from finger touch

.

>=10⁸R Insulation resistance

.

4.5mR Volume resistance

.

1.2 to 1.5Nm Tightening torque

.

IP20 Protection

.

DIN 5264 Standard screwdriver blade

.

UL94V-0 Flammability

.

-50 to 130°C Operating temperature range
