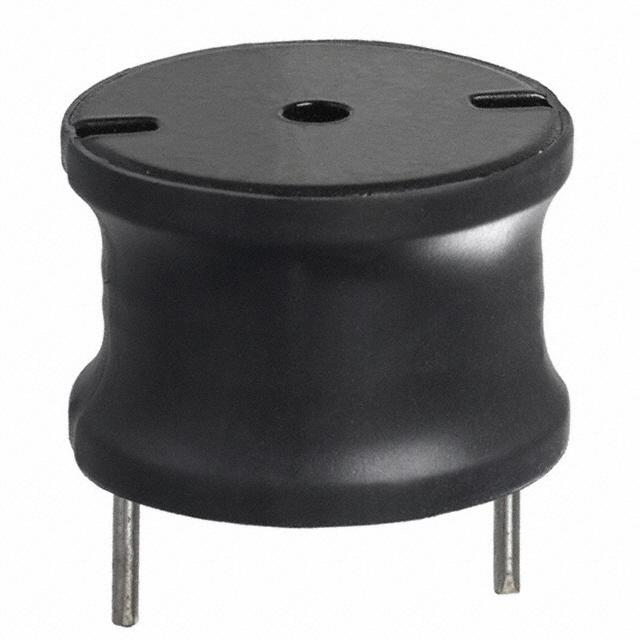

BOURNS JW MILLER 1140-392K-RC 射频扼流圈, 1140系列, 3.9mH 10% 2.8A
Jump-start your electrical design by including this high current rf choke leaded inductor from Bourns. This part has a pitch of 27.94 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 1K Hz. It has a tolerance of 10%. This device is made with bobbin core technology. This leaded inductor has a maximum DC current of 1.8 A with a maximum resistance of 845m Ohm. It has an inductance of 3.9m H. This product is 26.16 mm tall with a diameter of 38.1 mm.
额定电流 1.8 A
容差 ±10 %
电感 3.9 mH
屏蔽 No
电感公差 ±10 %
测试频率 0.001 MHz
电阻DC） ≤845 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.845 Ω
安装方式 Through Hole
引脚数 2
长度 1.03 in
高度 26.16 mm
直径 38.1 mm
脚长度 12.7 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1140-392K-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
1140-392K 伯恩斯 | 类似代替 | 1140-392K-RC和1140-392K的区别 |
