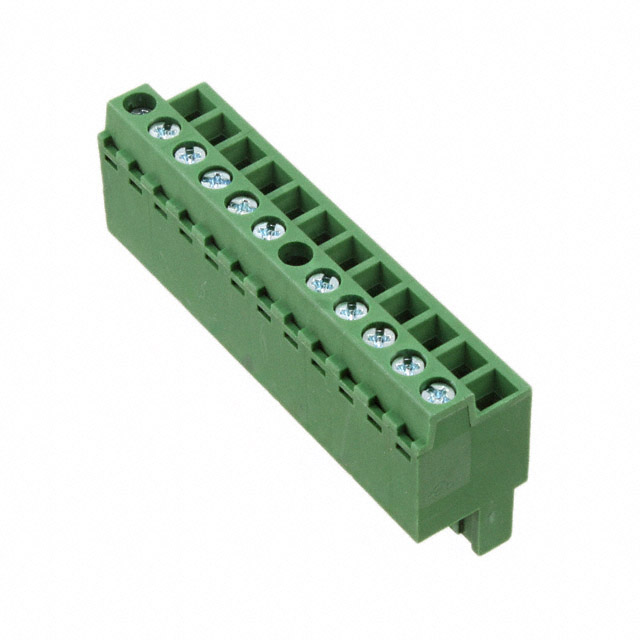

1-1986300-2

TE CONNECTIVITY  1-1986300-2  插拔式接线端子, 12 路, 300 V, 16 A, 5 mm, 24 AWG, 14 AWG

The key feature of the front style terminal block plug is that the wire entry cavity and the activating screw head are on the same plane which is parallel to the plug in direction. These plugs in particular are being released with 5.0mm and 5.08mm centerline spacing and will mate to industry standard vertical and right angle headers.

得捷:
TERM BLOCK PLUG 12POS STR 5MM

e络盟:
TE CONNECTIVITY  1-1986300-2  插拔式接线端子, 12 路, 300 V, 16 A, 5 mm, 24 AWG, 14 AWG

艾睿:
Need to ensure strong connections between circuits? This eurostyle block 1-1986300-2 PCB terminal block from TE Connectivity will do just that! This PL connector&s;s 12 contacts that are made out of phosphor bronze/steel and plated with tin/zinc. Its pitch is 5 mm. It has a maximum voltage rating of 300 V. It has a plug type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 16 A/contact. 1-1986300-2 is housed in polyamide 6/6. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 14-24 AWG. This product is 60 mm long, 14.9 mm tall and 27.1 mm deep.

Allied Electronics:
Conn; Term Blk; Plug; Front; 12; 5 mm; 24-14 AWG; 16 A; 300 V

Chip1Stop:
Conn Eurostyle Block PL 12 POS 5mm Screw ST Cable Mount 16A/Contact

Verical:
Conn Eurostyle Block PL 12 POS 5mm Screw ST Cable Mount 16A/Contact

Newark:
# TE CONNECTIVITY  1-1986300-2  Pluggable Terminal Block, 5 mm, 12 Positions, 24 AWG, 14 AWG, 2 mm², Screw

MASTER:
Plug, 5.0mm, Gn, Sws & WE sme side, 12p

Powell:
Pluggable Terminal Blocks FrtStyle Trm Blk Plg 5mm 12 POS

Online Components:
Plug, 5.0mm, Gn, Sws & WE sme side, 12p

Electro Sonic:
Plug, 5.0mm, Gn, Sws & WE sme side, 12p
