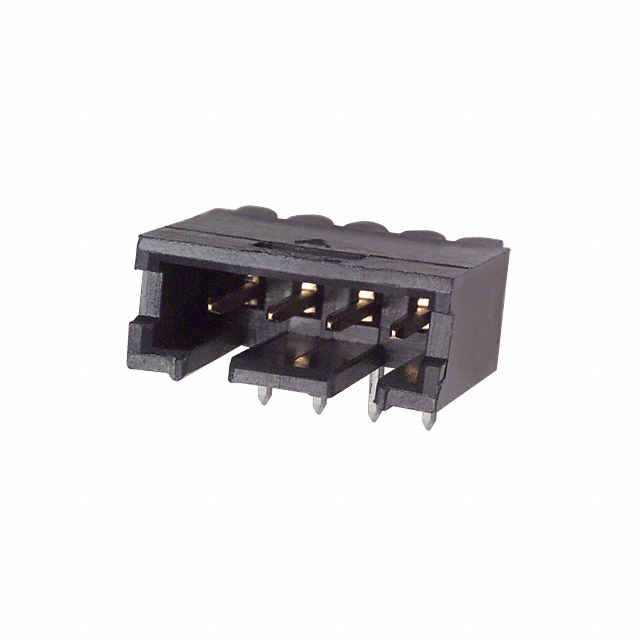

102203-1

AMPMODU 4 位置 通孔 单排 直角 0.100英寸 有护套针座

针座 通孔，直角 4 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 4POS 2.54MM

贸泽:
Headers & Wire Housings SHROUDED RA SINGLE 4 with standoffs

艾睿:

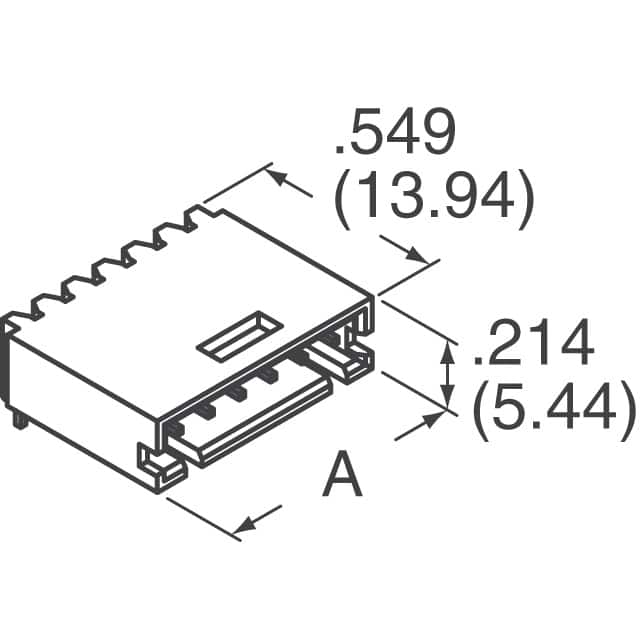

This shrouded 102203-1 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 13.21 mm long, 5.81 mm tall and 13.94 mm deep. This connector has an operating temperature of -55 to 105 °C. 102203-1 is housed in black thermoplastic.

Allied Electronics:
Header, Through Hole; Shrouded; Right Angle; Phosphor Bronze; Thermoplastic; 4

Jameco:
Connector Shrouded Header 4 Position 2.54mm Solder Right Angle Thru-Hole Gang of Tubes

安富利:
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes

Chip1Stop:
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes

Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 2.54mm Solder RA Thru-Hole Automotive Tube

Newark:
# AMP - TE CONNECTIVITY  102203-1  04 MODII HDR SRRA SHRD .100CL

MASTER:
ASSEMBLY, MOD II,HEADER,SINGLE ROW .100 C/L, RIGHT ANGLE,WITH .025 SQ POST

Powell:
.100 inch AMPMODU Headers

Online Components:
04 MODII HDR SRRA SHRD .100CL

Electro Sonic:
04 MODII HDR SRRA SHRD .100CL
