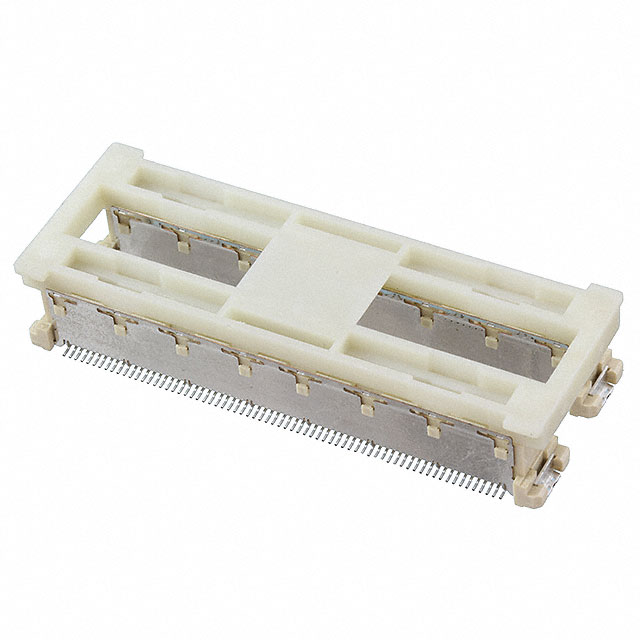

1-5353727-0

板对板与夹层连接器 PLUG 280P .6MM 8H SMT

.6FHP08H,280,B,GIG,08/Sn,ST,NSYes

Product Highlights

Plug

Family Name = Free Height

.60 mm Centerline

Number of Positions = 280

In-Line Contact Layout

得捷:
CONN PLUG 280POS SMD GOLD

贸泽:
板对板与夹层连接器 PLUG 280P .6MM 8H SMT

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this fine pitch connector 1-5353727-0 header connector from TE Connectivity. This PL connector&s;s 280 contacts that are made out of copper alloy and plated with gold. Its pitch is 0.6 mm. It has a maximum voltage rating of 50 VAC. It has a straight body orientation. This is a 2-row connector. It has a plug type gender. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tray format. This product is 48.7 mm long, 7.45 mm tall and 6.2 mm deep. It uses the solder termination method. 1-5353727-0 is housed in natural thermoplastic. This connector has an operating temperature of -40 to 85 °C.

Verical:
Conn Fine Pitch Connector PL 280 POS 0.6mm Solder ST SMD Tray

MASTER:
.6FHP08H,280,B,GIG,08/Sn,ST,NSYes

Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

Online Components:
.6FHP08H,280,B,GIG,08/Sn,ST,NSYes

Electro Sonic:
.6FHP08H,280,B,GIG,08/Sn,ST,NSYes
