1934900

Conn; Term Blk; PCB; Plug; Screw; 6; 5mm; Front; 26-14AWG; 12A; 250V

针位端子块

得捷:
TERM BLOCK PLUG 6POS 90DEG 5MM

艾睿:

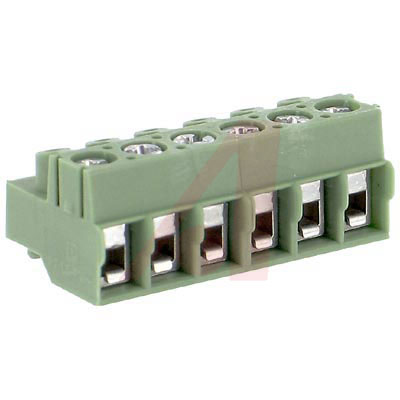

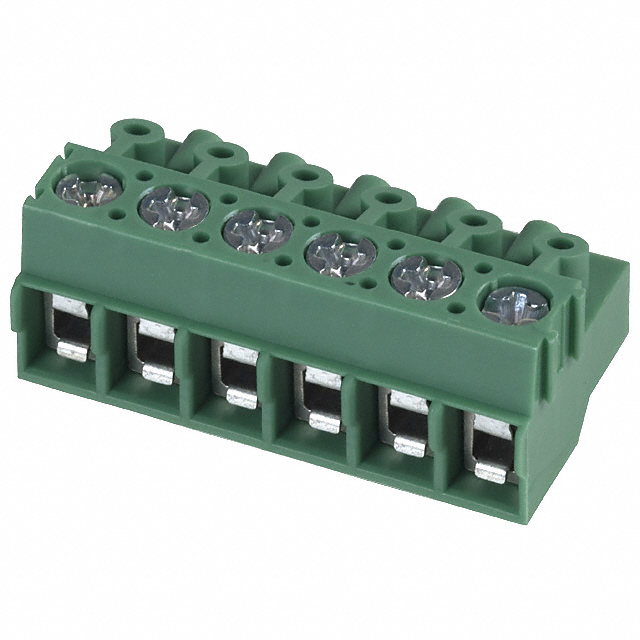

This 1934900 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 6 contacts that are plated with tin. Its pitch is 5 mm. It has a right angle/straight body orientation. It has a maximum voltage rating of 400 V. This is a 1-row connector. It has a female type gender. 1934900 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. Its wire is 14-26 AWG. This product is 30 mm long, 11.4 mm tall and 15 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; Plug; Screw; 6; 5 mm; Front; 26-14 AWG; 12 A; 250 V

Verical:
Conn Terminal Blocks F 6 POS 5mm Screw Right Angle/Straight Cable Mount 10A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 5 mm - connection method: Screw connection with wire protector - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 6 POS 5mm Screw Right Angle/Straight Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - ...
