159-2801-040

AMPHENOL SPECTRA-STRIP  159-2801-040  圆至扁电缆

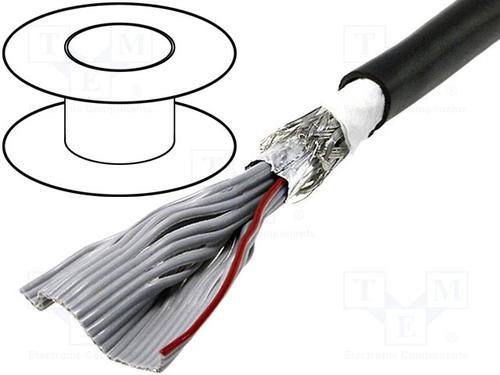

The is a 40-core shielded round N-flat Jacketed Cable with tinned copper conductor and a PVC insulator. This ribbon screened cable comes with black PVC jacket, aluminium/polyester foil and a tinned copper braid shield 85% minimum coverage. It combines the handling and shielding features of round cable and the mass termination capabilities of flat cable into a single construction. It is designed for routing in tight spaces where a round shape is more practical and where a foil braid shield is necessary to help meet FCC requirements for EMI/RFI suppression. The inner cable is extruded Spectra-Zip with alternating sections that are flat and slit. Each flat section is 3/4-inch in length with conductors on controlled spacing of 0.05 and 0.003-inch making it ideally suited for IDC mass termination methods. The flat section keep the conductor aligned for conductor positioning while the slit zip feature provides easy breakout of individual conductors.

.

High flexibility

.

75R Impedance

.

24pf/ft at 1MHz 78.7pf/m Capacitance

.

1.60ns/ft 5.25ns/m Propagation delay
