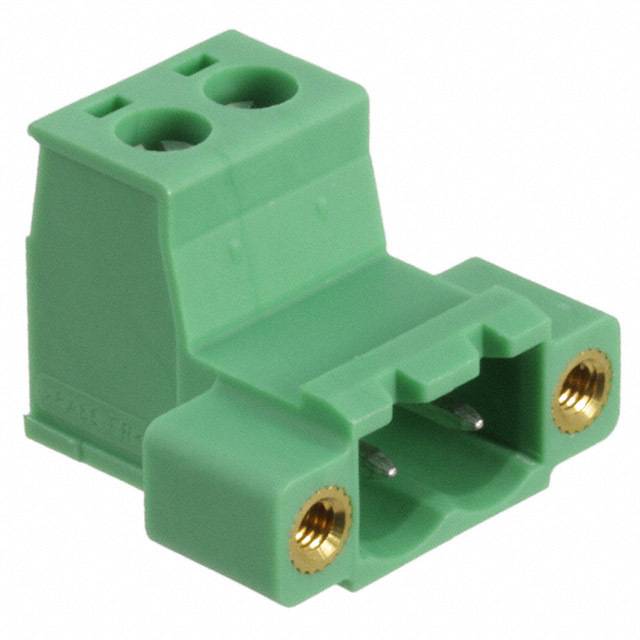

Conn Terminal Block M 2POS 5.08mm Screw RA Panel Mount 12A
Conn Terminal Block M 2 POS 5.08mm Screw RA Panel Mount 12A
欧时:
IC 2,5/ 2-STGF-5,08
得捷:
TERM BLOCK PLUG 2POS STR 5.08MM
艾睿:
This 1825501 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This M connector has 2 M contacts. It has a male type gender. Its pitch is 5.08 mm. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This device has a maximum current rating of 12 A. 1825501 is housed in polyamide. This product is 20.28 mm long, 15 mm tall and 19.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.
Allied Electronics:
Terminal Block PLUG 2POS STR 5.08MM
Verical:
Conn Terminal Block M 2 POS 5.08mm Screw RA Panel Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block M 2 POS 5.08mm Screw RA Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
