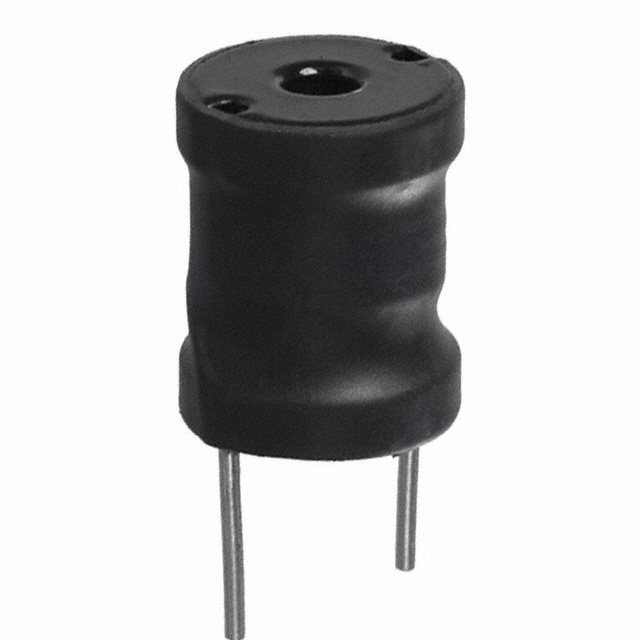

1110-331K-RC

非常高的电流容量 Very high current capacity

High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A 336mOhm DCR RDL

得捷:
FIXED IND 330UH 1.3A 336 MOHM TH

艾睿:
Resist changes in electric current flow in your electrical design with this high current rf choke 1110-331K-RC leaded inductor from Bourns. This part has a pitch of 11.94 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has an inductance of 330u H. This leaded inductor has a maximum DC current of 1.3 A with a maximum resistance of 336m Ohm. It has a tolerance of 10%. This device utilizes bobbin core technology. This product is 21.34 mm tall with a diameter of 16.76 mm. Its test frequency is 1K Hz.

安富利:
Ind High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A RDL

Verical:
High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A 0.336Ohm DCR RDL

MASTER:
High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A 336mOhm DCR RDL

Online Components:
High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A 336mOhm DCR RDL

Electro Sonic:
High Current RF Choke Bobbin Core 330uH 10% 1KHz Ferrite 1.3A 336mOhm DCR RDL
