1825514

5.08mm 排数:1 每排P数:3

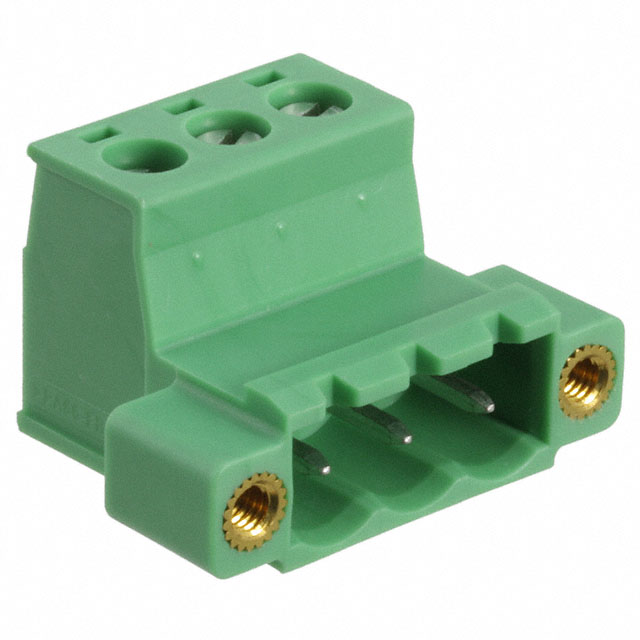

3 针位端子块 插头，公引脚 0.200"（5.08mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 3POS STR 5.08MM

欧时:
IC 2,5/ 3-STGF-5,08

立创商城:
插头 5.08mm 排数:1 每排P数:3 螺丝固定

艾睿:
When you implement this 1825514 PCB terminal block from Phoenix Contact, you will get the best connections results for your circuit! This M connector has 3 M contacts. It has a male type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This is a 1-row connector. 1825514 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 25.36 mm long, 15 mm tall and 19.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.

Allied Electronics:
COMBICON IC SER 5.08mm Pitch Straight Pluggable Trm Blk, PCB Header w/ Screw Term

Verical:
Conn PC Terminal Block M 3 POS 5.08mm Screw RA Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block M 3 POS 5.08mm Screw RA Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
