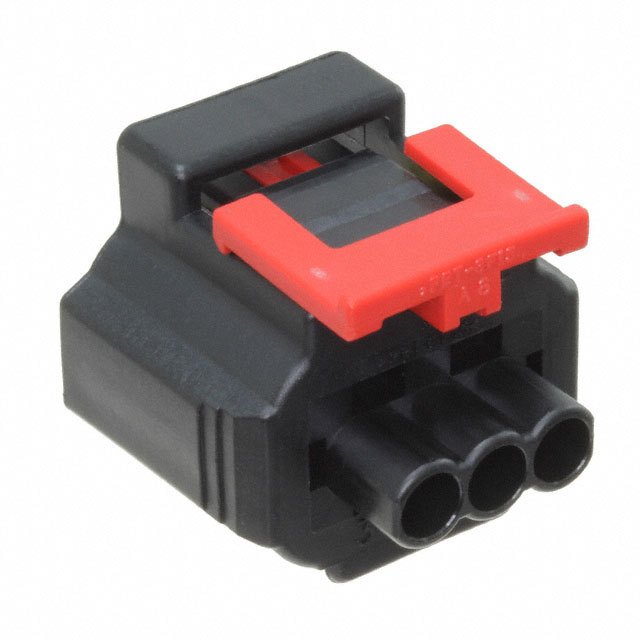

184270-1图片3
184270-1图片4
184270-1图片5
184270-1图片6
184270-1图片7
184270-1图片8
184270-1图片9
184270-1概述

汽车连接器 3 POS. PLUG ASSY W/CPA KEY A

3 矩形 - 外壳 插头 黑色 0.197"(5.00mm)


得捷:
CONN PLUG HSG 3POS 5.00MM


贸泽:
汽车连接器 3 POS. PLUG ASSY W/CPA KEY A


艾睿:
Whether your needs are small or large, this 184270-1 discrete wire housing from TE Connectivity can help you in making a secure linkage between a board and socket. This PL connector has 3 PL contacts. Its pitch is 5 mm. It has a plug type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 10 A/contact. Its wire is 14-22 AWG. 184270-1 is housed in black polybutylene terephthalate. This rectangle connector has an operating temperature of -40 to 125 °C. This product is 27.6 mm long, 24.8 mm tall and 27.6 mm deep.


安富利:
Conn Housing PL 3 POS 5mm Crimp ST


Powell:
SSC Sealed Sensor Connector System


184270-1中文资料参数规格
技术参数

触点数 3

极性 Male

排数 1

易燃性等级 UL 94 HB

针脚数 3

额定电流Max 10A/触头

工作温度Max 125 ℃

工作温度Min -40 ℃

外形尺寸

长度 27.6 mm

宽度 24.8 mm

高度 27.6 mm

物理参数

外壳颜色 Black

颜色 Black

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册
