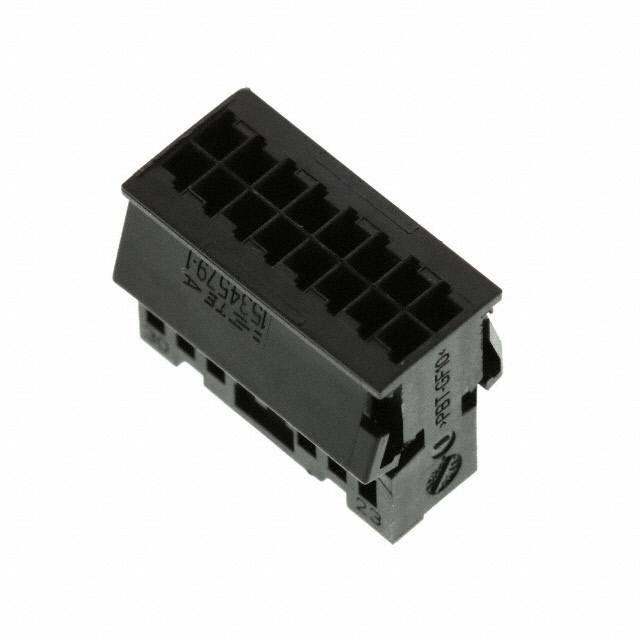

1534579-1图片3
1534579-1图片4
1534579-1图片5
1534579-1图片6
1534579-1图片7
1534579-1图片8
1534579-1概述

Conn Housing RCP 16POS Crimp ST Cable Mount

Rectangular Connectors - Housings


得捷:
CONN RCPT HSG 16POS 2.54MM


艾睿:
TE Connectivity&s;s 1534579-1 discrete wire housing allows for durable connections between discrete wires. This RCP connector has 16 RCP contacts. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a receptacle type gender. This product is 21.4 mm long and 16.6 mm. 1534579-1 is housed in black glass filled polybutylene terephthalate.


安富利:
Conn Housing RCP 16 POS Crimp ST Cable Mount


Powell:
MQS - Connectors


Electro Sonic:
16POS MQS REC COD A


1534579-1中文资料参数规格
技术参数

触点数 16

极性 Female

排数 2

针脚数 16

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压Max 12 VDC

外形尺寸

高度 16.6 mm

物理参数

外壳颜色 Black

颜色 Black

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买1534579-1
型号: 1534579-1
描述:Conn Housing RCP 16POS Crimp ST Cable Mount
