馈通电容器 100volts 2200pF 20% X7R

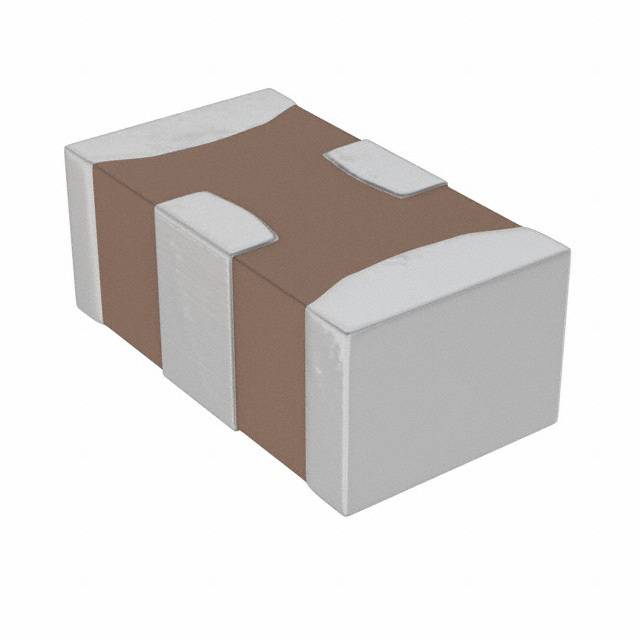

Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this multilayer ceramic capacitor from Johanson can be used in multiple applications and for various purposes. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 20%. This product is 1.626 mm long, 0.66Max mm tall and 0.889 mm deep. This device utilizes x2y technology. Its capacitance value is 0.0022uF.
额定电压DC 100 V
电容 2200 pF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
引脚数 4

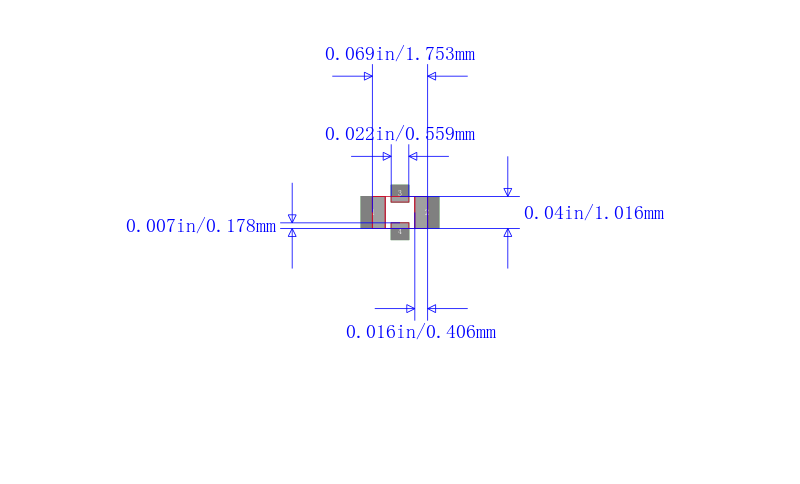

封装公制 1608
封装 0603
长度 1.626 mm
宽度 0.889 mm
高度 0.66 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 旁通，去耦
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
