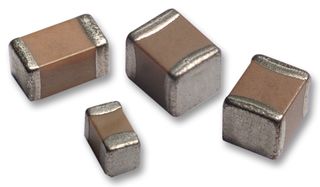

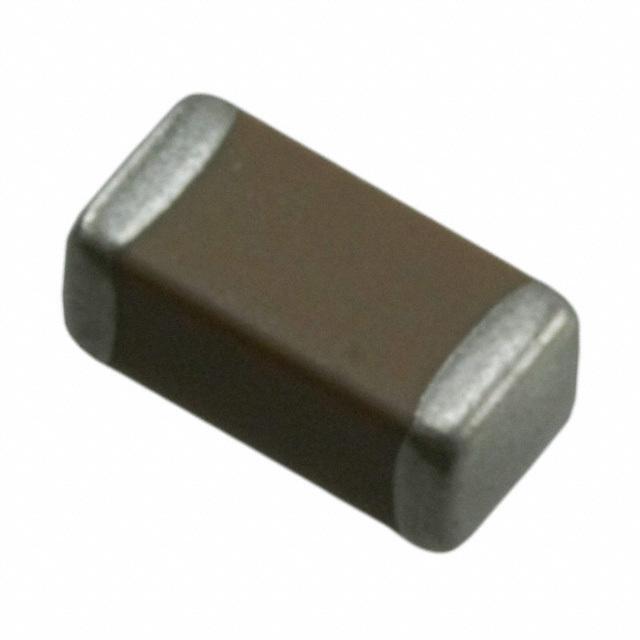

JOHANSON DIELECTRICS 102R18N151JV4E 多层陶瓷电容器, 表面贴装, 150 pF, ± 5%, C0G / NP0, 1 kV, 1206 [3216 公制]
The is a high voltage Multilayer Ceramic Capacitor with NP0 dielectric. The surface mount capacitor features a special internal electrode design which reduces voltage concentrations by distributing voltage gradients throughout the entire capacitor. This unique design also affords increased capacitance values in a given case size and voltage rating. It is designed and manufactured to the general requirement of EIA198 and is subjected to a 100% electrical testing making them well suited for a wide variety of telecommunication. It is suitable for lighting ballast circuits, DC to DC converters, LAN/WAN interface, voltage multipliers, back-lighting inverters, analogue and digital modems.
- .
- 100% Tin-plated matte nickel barrier termination
额定电压DC 1 kV
电容 150 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 High-Voltage
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1 kV
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.15 mm
宽度 1.6 mm
高度 1.7 mm
封装公制 3216
封装 1206
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 商业, Industrial, 通用, 电源管理, 工业, Commercial, Power Management, 通信与网络, Communications & Networking, 照明, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
102R18N151JV4E Johanson Technology 约翰逊 | 当前型号 | 当前型号 |
C1206C151JDGACTU 基美 | 功能相似 | 102R18N151JV4E和C1206C151JDGACTU的区别 |
MC1206N151J102CT Multicomp | 功能相似 | 102R18N151JV4E和MC1206N151J102CT的区别 |
MC1206N151J631CT Multicomp | 功能相似 | 102R18N151JV4E和MC1206N151J631CT的区别 |
