1-1337461-0

1-1337461-0图片1
1-1337461-0图片2

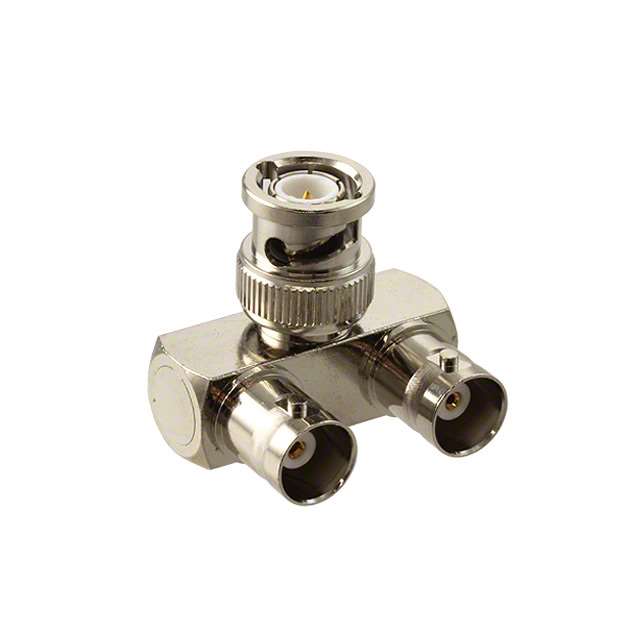

1-1337461-0图片3
1-1337461-0图片4
1-1337461-0图片5
1-1337461-0图片6
1-1337461-0图片7
1-1337461-0概述

Conn BNC Adapter F/PL/F 0 to 4GHz 50Ω Cable Mount Gold

同轴(RF) - 适配器 BNC 插头,公引脚 至 BNC 插孔,母插口(2) 50 欧姆


得捷:
CONN ADAPT PLUG TO JACK BNC


艾睿:
Do you have coaxial cables? This bnc adapter 1-1337461-0 RF connector manufactured from TE Connectivity is a must for you, it offers low transmission line impedance. It has a y style body orientation. It has an operating frequency of 0 to 4G Hz. This component comes in tray packaging, useful for fast picking and placing of your parts. This rf connector has an operating temperature of -65 to 165 °C. This product is 32 mm long, 27.8 mm tall and 14.5 mm deep.


安富利:
Conn BNC Adapter F/PL/F 0 to 4GHz 50Ohm Cable Mount Gold


Verical:
Conn BNC Adapter 0Hz to 4GHz 50Ohm Y Style F/PL/F Gold Tray


Newark:
# AMP - TE CONNECTIVITY  1-1337461-0  BNC R/A Y ADP 50OHM NICKEL PLTD New


MASTER:
BNC ELBOW Y-ADAPTOR P-J-J 50 OHM


Powell:
BNC RF Connectors


Online Components:
BNC R/A Y Adp 50Ohm Nickel Pltd


Electro Sonic:
BNC R/A Y Adp 50Ohm Nickel Pltd


1-1337461-0中文资料参数规格
技术参数

触点电镀 Gold

绝缘电阻 5000 MΩ

拔插次数 500

工作温度Max 85 ℃

工作温度Min -65 ℃

额定电压Max 500 VAC

外形尺寸

高度 27.8 mm

物理参数

触点材质 Brass

介质材料 Teflon

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Tray

制造应用 Signal, Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694010

数据手册

在线购买1-1337461-0
型号: 1-1337461-0
描述:Conn BNC Adapter F/PL/F 0 to 4GHz 50Ω Cable Mount Gold
