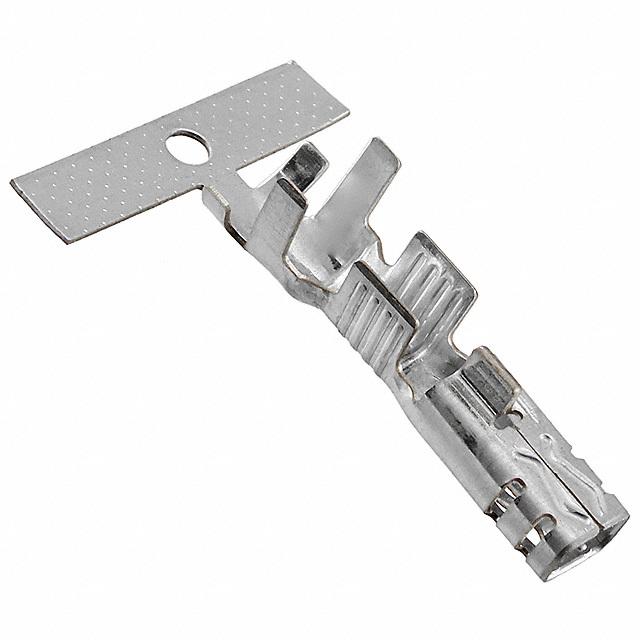

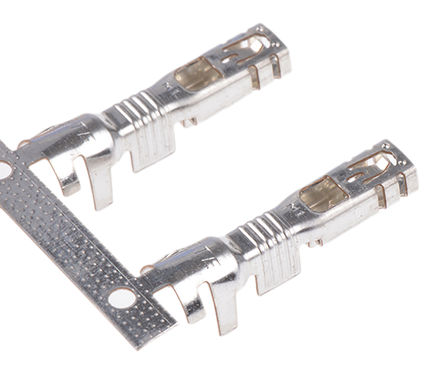

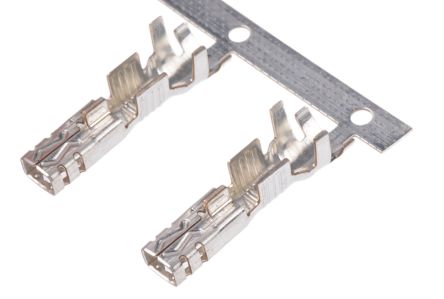

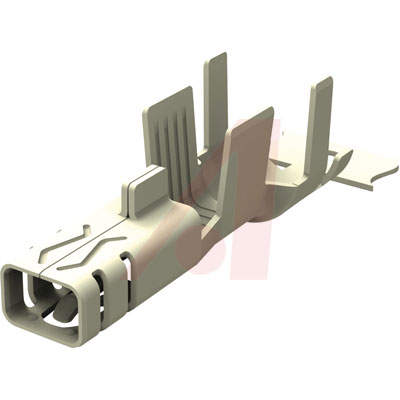

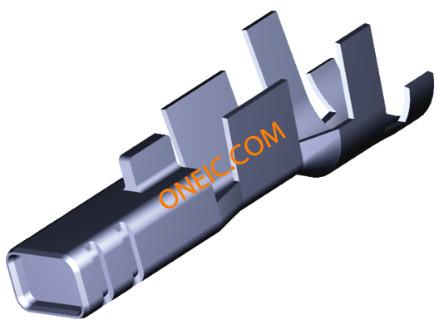

TE CONNECTIVITY 1971781-1 矩形电源连接, Power Triple Lock系列, 镀锡触芯, 磷青铜, 母, 压接
三重锁扣式电源触点
一系列插片和插座触点,适用于三重锁扣式电源插头和插座外壳。 PTL(三重锁扣式电源)插头外壳接受插座触点且 PTL 插座外壳接受插片触点。 这些三重锁扣式电源连接器触点由铜合金制成,预镀锡,且提供各种电线尺寸。 型号还具有 150°C 高温。
得捷:
CONN FM BLADE SCK 14AWG CRMP TIN
立创商城:
1971781-1
欧时:
TE Connectivity Power Triple Lock 系列 母 压接端子触点 1971781-1, 镀锡 铜合金触芯 至 14AWG
贸泽:
集管和线壳 14 AWG PhosBr Rcpt Con Term Reel/4000
e络盟:
AMP FROM TE CONNECTIVITY 1971781-1 矩形电源连接, Power Triple Lock系列, 镀锡触芯, 铜, 母, 压接
艾睿:
This 1971781-1 connector contact from TE Connectivity is will form a perfect mechanical connection, never loose data again. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 6 A. This has a Connector Power connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This connector contact has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 4.7 mm deep. It uses the crimp termination method. Its wire is 14 AWG.
Allied Electronics:
Contact; Socket; Crimp; 14 AWG; Power Triple Lock; Tin over Copper Alloy
安富利:
Contact SKT Crimp ST Cable Mount
Verical:
Contact SKT Crimp ST Cable Mount 14AWG T/R Automotive
Newark:
# AMP - TE CONNECTIVITY 1971781-1 Rectangular Power Contact, Power Triple Lock Series, Tin Plated Contacts, Copper, Socket, Crimp
MASTER:
RECEPTACLE CONTACT POWER TRIPLE LOCK
Online Components:
PTL RECEPTACLE CONTACT, 14 AWG
Electro Sonic:
PTL RECEPTACLE CONTACT, 14 AWG
极性 Female
线规 14 AWG
触点电镀 Tin
无卤素状态 Halogen Free
额定电流Max 12 A
工作温度Max 105 ℃
工作温度Min -55 ℃
封装 -
高度 4.9 mm
封装 -
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536904000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1971781-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1971781-2 泰科 | 功能相似 | 1971781-1和1971781-2的区别 |
