射频适配器 - 系列之间 SMA JCK/MMCX JCK GLD
SMA Jack to MMCX Jack Between Series Adapter, 0.281 " Dia. x 0.645 " L
** Material:** Body and Coupling Nut — Nickel-plated body over brass; Contact — Phosphor bronze or beryllium copper, gold-plated; Insulator — Teflon® or Delrin®. ** Impedence:** 50 Ω-75 Ω. ** Frequency Range:** 0-4 GHz BNC adapters only; 0-11 GHz all others. ** Working Voltage:** 500 V RMS at sea level. ** Temperature Range:** –55°C to +85°C.
Employs mating interfaces that are compatible with MIL-C-39012 and applicable industry standards. SMA plug interfaces are thick wall design for ruggedness and durability. Materials include gold-plated brass body parts, Teflon® insulators and gold plated hardened beryllium copper for all spring contacts.

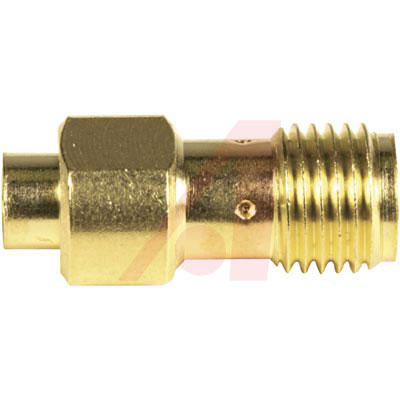

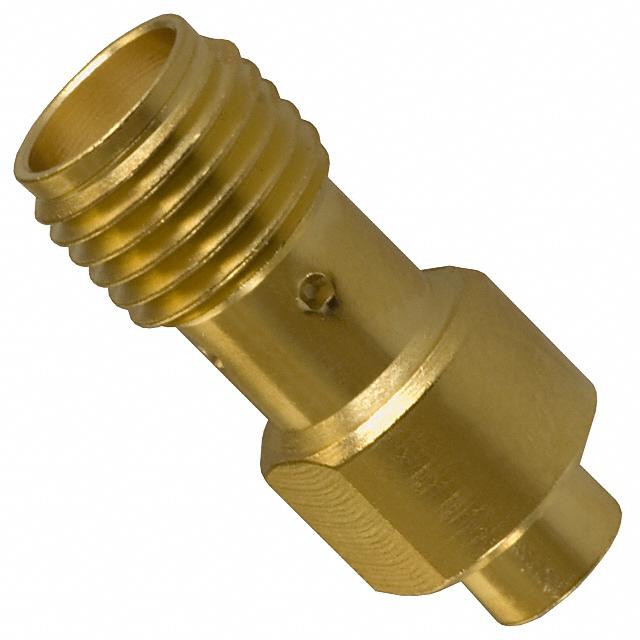

Gold plated SMA jack to MMCX jack.
