Phoenix Contact 1694237 连接器
Conn M12 Circular SKT 5 POS Solder ST Thru-Hole 5 Terminal 1 Port
得捷:
CONN RCPT FMALE 5POS GOLD SOLDER
欧时:
1694237 - Phoenix Contact 菲尼克斯 连接器
e络盟:
传感器连接器, 5路, M12, 母, M12, 公, 5路, 焊接插头, 直形面板安装
艾睿:
Conn M12 Circular SKT 5 POS Solder ST Thru-Hole 5 Terminal 1 Port
Verical:

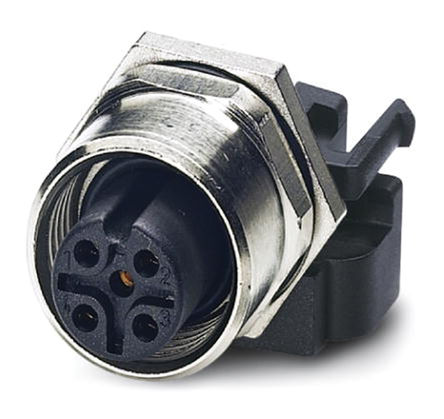

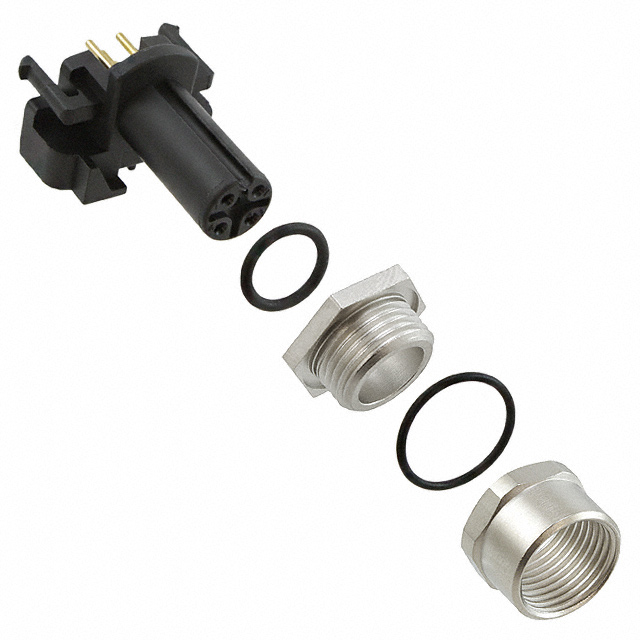

Sensor/actuator flush-type socket, 5-pos., M12, A-coded, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection
Newark:
# PHOENIX CONTACT 1694237 SENSOR CONNECTOR, M12, RCPT, 5POS New
MASTER:
Sensor/actuator flush-type socket - 5-pos. - M12 - A-coded - rear/screw mounting with M12 thread - with polarity protection - with straight solder connection
Online Components:
Conn M12 Circular SKT 5 POS Solder ST Thru-Hole 5 Terminal 1 Port
Electro Sonic:
Sensor/actuator flush-type socket - 5-pos. - M12 - A-coded - rear/screw mounting with M12 thread - with polarity protection - ...
触点数 5
极性 Female
触点电镀 Gold
额定电压DC 60.0 V
额定电流 4 A
绝缘电阻 100 MΩ
针脚数 5
额定电流Max 4 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压Max 60 V
额定电压 60 V
安装方式 Through Hole
高度 24 mm
触点材质 Brass
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536694020
