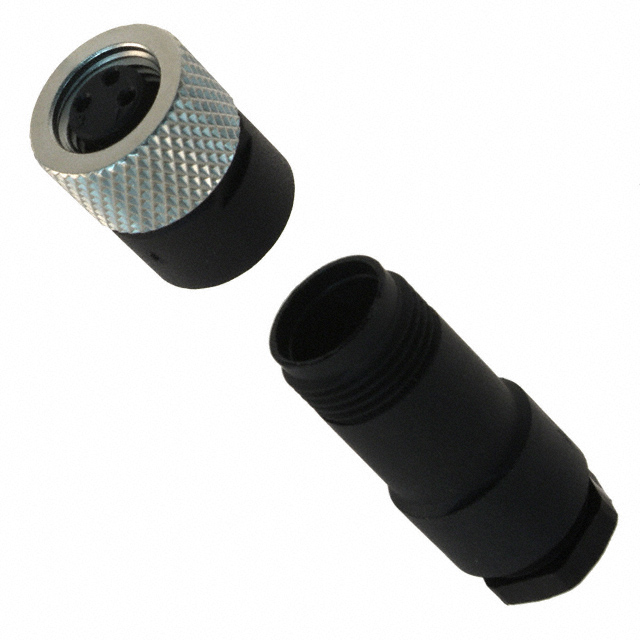

1200910001图片8
1200910001图片9
1200910001图片10
1200910001概述

Conn M8 Circular F 3POS ST Cable Mount 3 Terminal 1Port

3 针位圆形 插头,母插口 -


得捷:
CONN PLUG FMALE 3POS GOLD


艾睿:
Connect your circular inputs with this m8 circular 1200910001 connector from Molex. It has a straight body orientation. It has a plug type gender. This female connector&s;s 3 contacts that are made out of copper alloy and plated with gold over copper. This device has a maximum current rating of 4 A/contact. This product is 37 mm long with a diameter of 11.6 mm. This circular connector has an operating temperature of 0 to 80 °C.


安富利:
Conn M8 Circular F 3 POS ST Cable Mount 3 Terminal 1 Port


1200910001中文资料参数规格
技术参数

触点数 3

极性 Female

触点电镀 Gold over Nickel

额定电流 4 A

无卤素状态 Low Halogen

方向 Straight

针脚数 3

额定电流Max 4A/触头

工作温度Max 80 ℃

工作温度Min 0 ℃

额定电压 60VAC, 75VDC

物理参数

外壳颜色 Black

触点材质 Copper Alloy

工作温度 0℃ ~ 80℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买1200910001
型号: 1200910001
制造商: Molex 莫仕
描述:Conn M8 Circular F 3POS ST Cable Mount 3 Terminal 1Port
