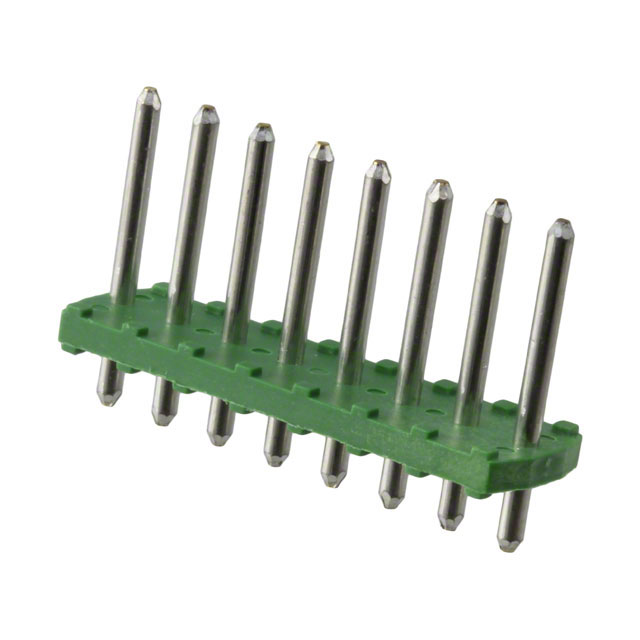

1986718-8

TE CONNECTIVITY  1986718-8  针座, 直型, 8路, 1排

8 针位端子块 接头，公引脚，无罩 0.138"（3.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 8POS VERT 3.5MM

e络盟:
针座, 直型, 8路, 1排

艾睿:
Think of TE Connectivity&s;s unshrouded 1986718-8 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with tin. Its pitch is 3.5 mm. It has a straight body orientation. It has a maximum voltage rating of 150 V. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 2 A. This product is 25.5 mm long, 13 mm tall and 8 mm deep. 1986718-8 is housed in green polyamide. This connector has an operating temperature of -40 to 110 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole

Newark:
# TE CONNECTIVITY  1986718-8  Board-To-Board Connector, 3.5 mm, 8 Contacts, Header, Through Hole, 1 Rows

MASTER:
MALE CONNECTOR, UNSHROUDED HEADER WITH WIDE BASE STRAIGHT SIDE STACKABLE,

Online Components:
HEADER, 8P, 3.5 PCB 16.5 H WB

Electro Sonic:
HEADER, 8P, 3.5 PCB 16.5 H WB
