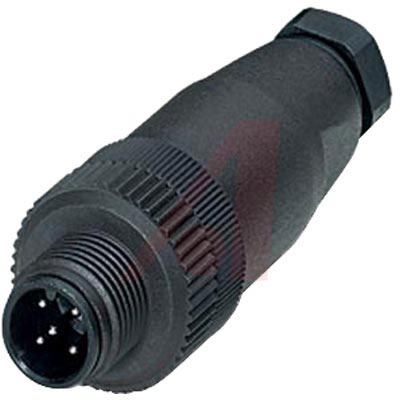

环形公制连接器 M12 PLG 4P PG7 BLK SACC-M12MS-4CON-PG7
Sensor Actuator Plug, 4 A Nominal Current, 150 VDC Nominal Voltage
* UL Listed
Plug insulation material PBT/PA.
得捷:
CONN PLUG MALE 4POS SCREW
欧时:
Conn,Plug,Sensor/Actuator,Straight,4,Pin
贸泽:
环形公制连接器 M12 PLG 4P PG7 BLK SACC-M12MS-4CON-PG7
艾睿:
Create a connection with your cylindrical cable housing using this sensor actuator 1681088 connector from Phoenix Contact. It has a socket type gender. This male connector&s;s 4 contacts that are made out of brass and plated with bronze. Its shell size is 18-24. It has a straight body orientation. This device has a maximum current rating of 4 A. This circular connector has an operating temperature of -40 to 85 °C. This product is 60 mm long with a diameter of 20 mm.
Allied Electronics:
Conn; Circ; Plug; Sensor/Actuator; Straingt; Screw 4; Pin; 24-18 AWG; 4 A; 250 V
Verical:
Conn Sensor Actuator M 4 POS ST Cable Mount 4 Terminal 1 Port
MASTER:
Connector - Universal - 4-position - Plug straight M12 - A-coded - Screw connection - knurl material: Plastic - cable gland Pg7 - external cable diameter 4 mm ... 6 mm
Online Components:
Conn Sensor Actuator M 4 POS ST Cable Mount 4 Terminal 1 Port
Electro Sonic:
Connector - Universal - 4-position - Plug straight M12 - A-coded - Screw connection - knurl material: Plastic - cable ...
