1582211概述

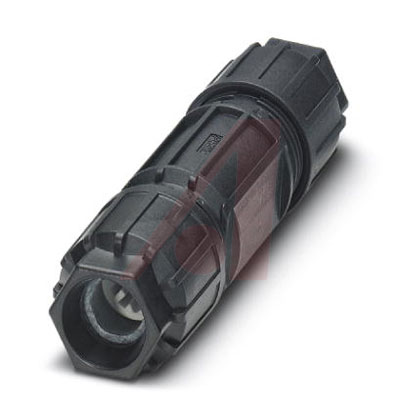

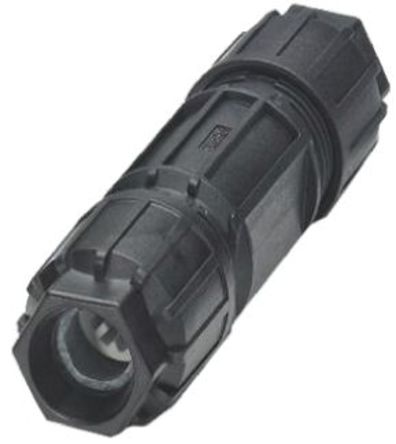

QUICKON cable connector, black, 3POS.+PE 18-16AWG

4(3 + PE) 针位圆形 分配器 IDC


得捷:
CONN DISTRIBUTOR 4POS SILVER IDC


欧时:
PLUSCON,QUICKON In-line Connector### Phoenix QUICKON SeriesQUICKON creates a fast connection with touch protected IDC technology. Designed for connecting round cables efficiently as they will disconnect again and they can be used more than once. The QUICKON connection method is suitable for Industrial applications where a permanent/pluggable connection may be needed. The fast connection automatically creates the contact and strain relief when tightened.No need to strip the cable wires Assembly without special tools Rugged housing with up to IP68 protection


贸泽:
Circular Metric Connectors QPD C 3PE2.5 2X6- 10 BK


Allied Electronics:
QUICKON cable connector, black, 3-pos.+PE 18-16 AWG


1582211中文资料参数规格
技术参数

触点数 4

额定电流 20 A

工作温度Max 80 ℃

工作温度Min -40 ℃

额定电压 630 V

物理参数

颜色 Black

触点材质 Brass

工作温度 -40℃ ~ 80℃

外壳材质 Nylon

其他

产品生命周期 Obsolete

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1582211
型号: 1582211
描述:QUICKON cable connector, black, 3POS.+PE 18-16AWG
