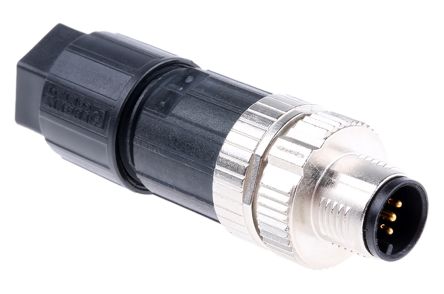

1432567图片1

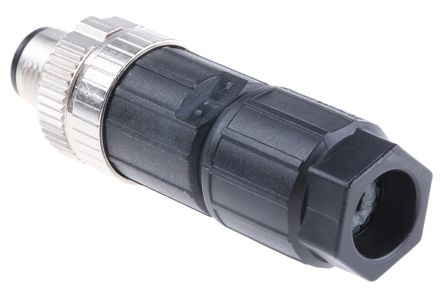

1432567图片2

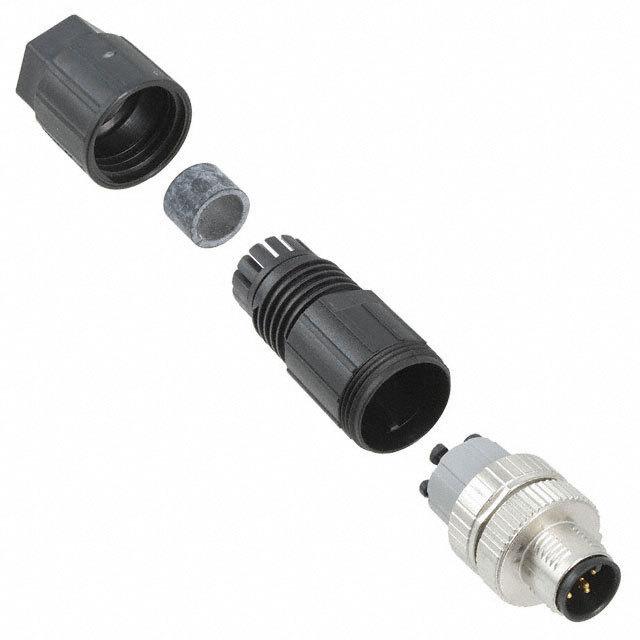

1432567图片3
1432567图片4
1432567图片5
1432567图片6
1432567图片7
1432567图片8

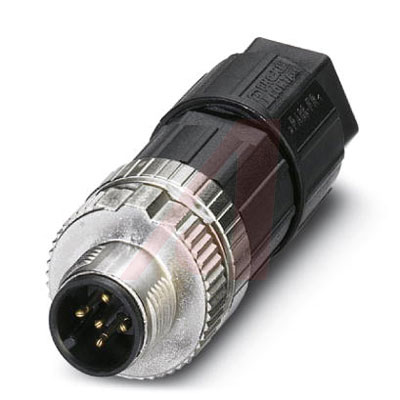

1432567图片9
1432567图片10
1432567图片11
1432567图片12
1432567图片13
1432567概述

M12 Spring-cage connectionSensor/ actuator connector M12, also suitable in part for SPEEDCON Unshielded With spring-cage connection A-coded Metal knurl ### PLUSCON 圆形连接器

Conn Sensor Actuator M 5 POS ST Cable Mount 1 Port


得捷:
CONN PLUG MALE 5P SPRING-CAGE


欧时:
5路 电缆安装 直向 圆形连接器


贸泽:
环形公制连接器 SACC-MS-5SC M SCO


艾睿:
This sensor actuator 1432567 connector from Phoenix Contact is perfect for connecting any circular peripherals you may need to use in your device. This male connector&s;s 5 contacts that are made out of bronze and plated with gold over nickel. It has a straight body orientation. It has a plug type gender. Its shell size arrangement is plated in nickel. This device has a maximum current rating of 4 A. This product is 60 mm deep.


Allied Electronics:
SACC Series, 5 Pole Cable Mount M12 ConnPlug, 19mm Shell Size, Male Contacts, IP67


Verical:
Connector, 5-position, Plug straight M12 SPEEDCON, A-coded, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm to 8 mm


MASTER:
Sensor Actuator Flush type socket


Online Components:
Conn Sensor Actuator M 5 POS ST Cable Mount 1 Port


Electro Sonic:
Sensor Actuator Flush type socket


1432567中文资料参数规格
技术参数

触点数 5

极性 Male

额定电流 4 A

绝缘电阻 100 MΩ

针脚数 5

额定电流Max 4 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压Max 60 V

额定电压 60 V

物理参数

触点材质 Bronze

工作温度 -40℃ ~ 85℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020
