1500787

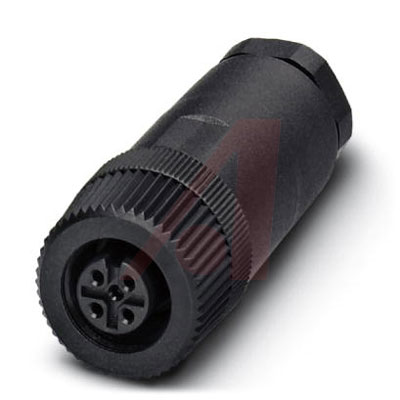

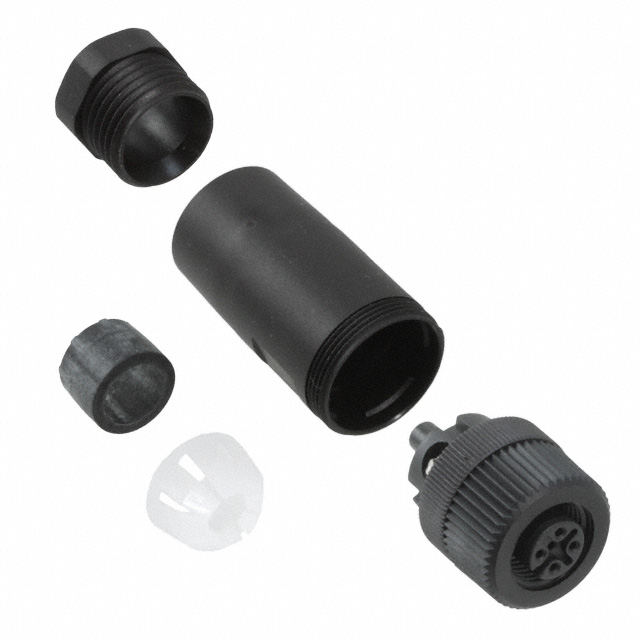

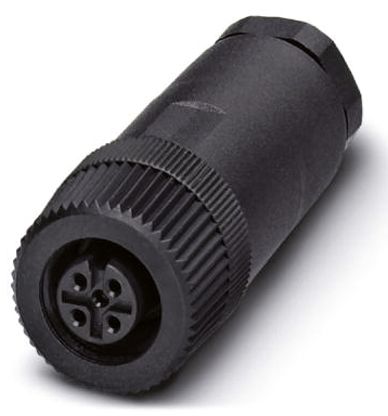

PHOENIX CONTACT  1500787  传感器连接器, IP67, 5 极M12传感器和制动器 新

Contact SACC 直向

SACC 系列通用连接器随附各种连接选件和多种方位，以确保覆盖您的应用

IP67 级

M12 x 1mm 螺纹和 7/8"-16UNF 连接选件

提供压铸锌镀镍和塑料结构选件

提供绝缘层剥离端接选件，无需剥线，因此可简化连接和节省时间

电缆螺钉端接在塑料变体上可用

得捷:
CONN RCPT FMALE 5P SCREW

欧时:
Connector,Straight,M12,5W,skt

e络盟:
传感器连接器, IP67, 5 极M12传感器和制动器

艾睿:
This input/output sensor actuator 1500787 connector from Phoenix Contact is perfect for making a solid connection between your cylindrical cable housing. It has a plug type gender. This socket type connector&s;s 5 contacts that are made out of brass and plated with white bronze. It has a straight body orientation. This device has a maximum current rating of 4 A. It uses the screw termination method. This circular connector has an operating temperature of -40 to 85 °C. This product is 54 mm long with a diameter of 20 mm.

Allied Electronics:
SACC SER, 5 Pole Cable Mount Conn Skt, 20mm Size, Female Contacts, Screw On

Verical:
Sensor Actuator SKT 5 POS Screw ST Cable Mount 5 Terminal 1 Port

Newark:
# PHOENIX CONTACT  1500787  SENSOR CONNECTOR, M12, RCPT, 5POS

MASTER:
Connector - Universal - 5-position - Socket straight M12 - A-coded - Screw connection - knurl material: Plastic - cable gland Pg9 - external cable diameter 6 mm ... 8 mm

Online Components:
Conn Sensor Actuator SKT 5 POS Screw ST Cable Mount 5 Terminal 1 Port

Electro Sonic:
Connector - Universal - 5-position - Socket straight M12 - A-coded - Screw connection - knurl material: Plastic - cable ...
