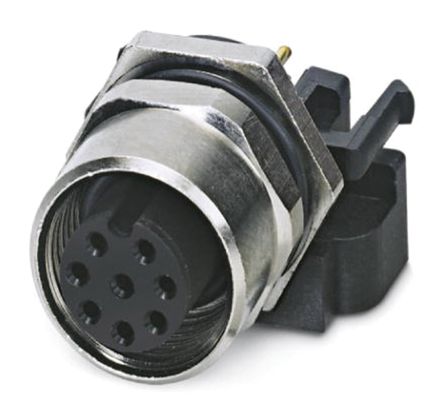

1556854图片1
1556854图片2
1556854图片3
1556854图片4
1556854图片5
1556854图片6
1556854图片7
1556854概述

Phoenix Contact 1556854 连接器

8 Position Circular Connector Receptacle, Female Sockets Solder


得捷:
CONN RCPT FMALE 8POS GOLD SOLDER


欧时:
1556854 - Phoenix Contact 菲尼克斯 连接器


艾睿:
Conn Sensor Actuator F 8 POS Solder RA Thru-Hole 8 Terminal 1 Port


Electro Sonic:
Sensor/actuator flush-type socket - 8-pos. - M12 - A-coded - rear/screw mounting with M12 thread - with polarity protection - ...


1556854中文资料参数规格
技术参数

触点数 8

额定电流 2 A

绝缘电阻 100 MΩ

针脚数 8

额定电流Max 2 A

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压Max 30 V

额定电压 30 V

接触电阻Max 3 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 16 mm

物理参数

触点材质 Brass

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
