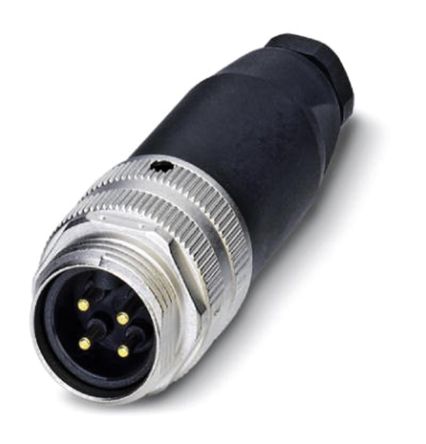

1521326图片1
1521326图片2
1521326图片3
1521326图片4
1521326图片5
1521326图片6
1521326图片7
1521326图片8
1521326概述

Phoenix Contact 1521326 连接器

4 Position Circular Connector Plug, Male Pins Screw


得捷:
CONN MALE STR 4POS METAL KNURL


欧时:
Connector 1521326


艾睿:
Need a solid cylindrical cable housing connection? Then this sensor actuator 1521326 connector from Phoenix Contact is right for you. It has a plug type gender. This male connector&s;s 4 contacts that are made out of brass and plated with gold. It has a straight body orientation. This device has a maximum current rating of 9 A. This circular connector has an operating temperature of -25 to 85 °C. This product is 83 mm long with a diameter of 27 mm. It uses the screw termination method.


Allied Electronics:
Sensor/actuator conn; male; straight; 4-pos; 7-8"; screw conn; metal knurl; screw conn


1521326中文资料参数规格
技术参数

触点数 4

额定电流 9 A

绝缘电阻 100 MΩ

针脚数 4

拔插次数 100

额定电流Max 9 A

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压Max 300 V

额定电压 250 V

接触电阻Max 5 mΩ

封装参数

安装方式 Screw

物理参数

触点材质 Copper Zinc

工作温度 -25℃ ~ 85℃

外壳材质 Plastic

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1521326
型号: 1521326
描述:Phoenix Contact 1521326 连接器
