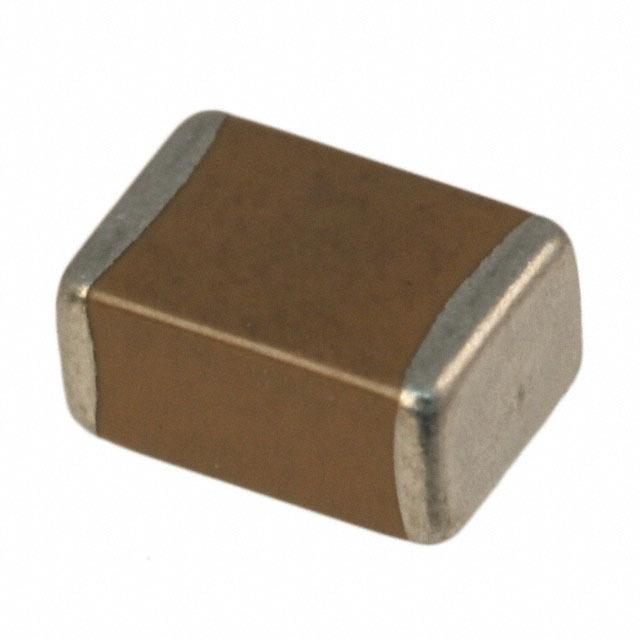

JOHANSON DIELECTRICS 102S43W103MV4E 多层陶瓷电容器, 表面贴装, 0.01 µF, ± 20%, X7R, 1 kV, 1812 [4532 公制]
The is a high voltage Multilayer Ceramic Capacitor with X7R dielectric. The surface mount capacitor features a special internal electrode design which reduces voltage concentrations by distributing voltage gradients throughout the entire capacitor. This unique design also affords increased capacitance values in a given case size and voltage rating. It is designed and manufactured to the general requirement of EIA198 and is subjected to a 100% electrical testing making them well suited for a wide variety of telecommunication. It is suitable for lighting ballast circuits, DC to DC converters, LAN/WAN interface, voltage multipliers, back-lighting inverters, analogue and digital modems.
- .
- 100% Tin-plated matte nickel barrier termination
额定电压DC 1.00 kV
电容 10000 pF
容差 ±20 %
电介质特性 X7R
产品系列 TANCERAM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1 kV
安装方式 Surface Mount
引脚数 2
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 2.8 mm
封装公制 4832
封装 1812
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 1000
制造应用 商业, Industrial, 通用, 电源管理, 工业, Commercial, Power Management, 通信与网络, Communications & Networking, 照明, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
