1323XDSK-BDM概述
Mc1323x, Onboard Bdm Port, Ir Transmitter, Dev Kit

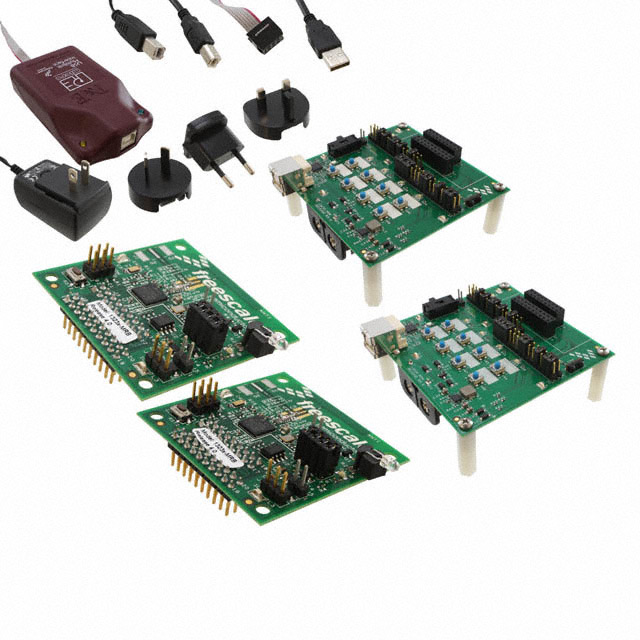

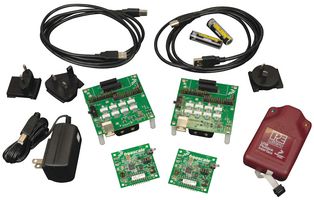

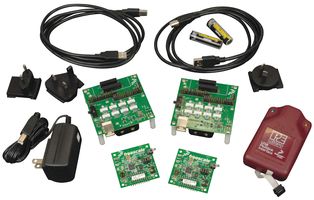

The is a MC1323X microcontroller based starter development kit with USB multilink BDM provides a full set of hardware platforms for evaluation of the cost effective MC13234 and MC13237 collectively MC1323x system onchip SoC solutions. The MC1323x family is a low cost system onchip SoC platform for the IEEE 802.15.4 standard that incorporates a complete, low power, 2.4GHz radio frequency transceiver with Tx/Rx switch, an 8bit HCS08 CPU, and a functional set of MCU peripherals into a 48 pin LGA package.
- .
- Full IEEE 802.15.4 compliant wireless node, ZigBee capable with BeeStack software stack
- .
- Reference design area with small footprint, low cost RF node
- .
- 32MHz reference oscillator
- .
- BDM serial MCU debug port
- .
- Optional secondary 32.768KHz crystal oscillator for accurate low power timing
- .
- IR blaster
- .
- 2Mbit serial FLASH uses SPI interface
- .
- Master reset switch
- .
- Full power regulation and management
