126-233

COOPER INTERCONNECT  126-233  连接器

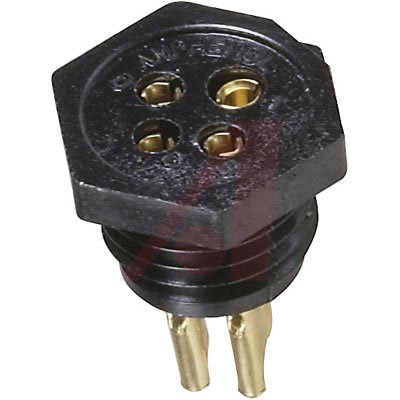

Gold-Plated Miniature Hexagonal Connectors, 4, 5, 7 and 9 Contacts

Dielectric of black thermoplastic.

.

* Contacts:** #20 AWG for 20 gauge or smaller wire. Gold over copper plate. ** Hardware:** Nickel-plated solid brass. Rated 7.5 amps, 500 VAC RMS at sea level. ** Temperature Range:** -60°C to +125°C. ** Ordering Information:** To obtain the part required, select the desired parts from the possibilities shown above. Each part is identified with a letter. The tables below indicate the parts included with each stock number. ** Example:** Stock number 719-4517 includes parts A, G, and H.

It"s latching mechanisms is hood and cable clamp.
