SCHROFF 13100103 前端电源 交流/直流, 固定输出, 90 V, 1输出, 254 V, 100 W, 12 V

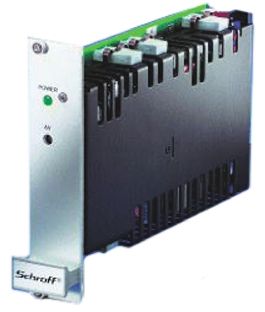

Maxpower AC/DC Switched Mode Single Power Supply
The Maxpower is a 19in. compatible AC/DC switched mode, single output voltage power supply.
Wide input voltage range 90 ... 254 Vac and 100 → 360 Vdc with active Power Factor Correction PFC
High performance
1 output voltage
Integrated decoupling diode for redundant operation
Active Current Share Bus CSB
Signalling: Output voltage OK Width: 6 HP 30 mm
### 注
Output data at mains/line voltage >190 Vac, Ta = 0 → 50 °C.
电源电压DC 254 V
额定功率 100 W
输出接口数 1
输出电压 12 V
输出电流 8.3 A
输出功率 100 W
输入电压DC Max 360 V
输入电压DC Min 100 V
输入电压AC Max 254 v
输入电压AC Min 90 v
输出电流Max 8.3 A
输出功率Max 100 W
输入电压 12 V
安装方式 Rack
引脚数 15
长度 171.93 mm
宽度 30.5 mm
高度 128 mm
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
