1546068概述

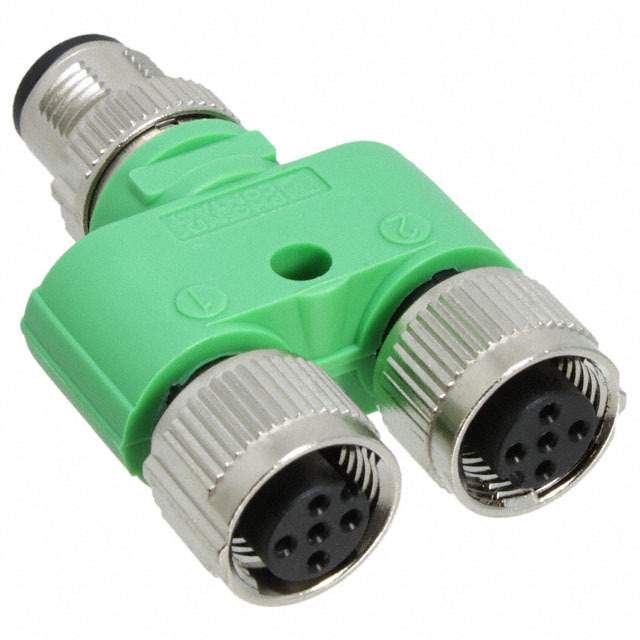

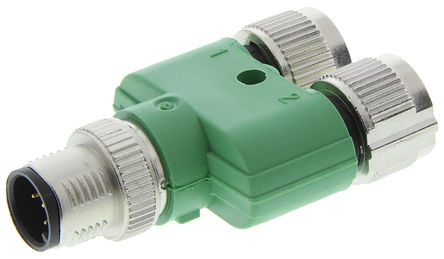

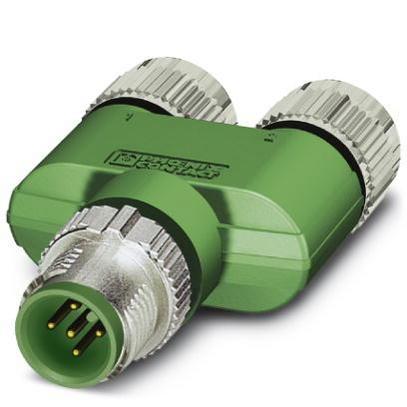

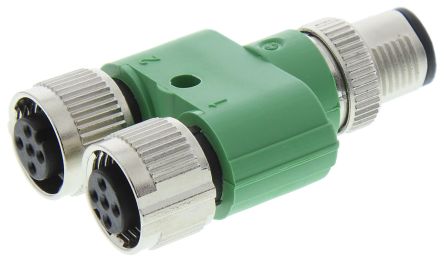

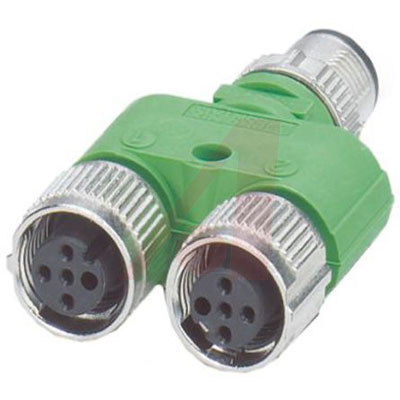

M8 and M12 distributorSensor/ actuator distributor for M8 and M12 plug-in connections ### Phoenix Contact - PLUSCON 现场

M8 and M12 distributor

Sensor/ actuator distributor for M8 and M12 plug-in connections

### Contact - PLUSCON 现场


得捷:
CONN Y-ADPT 5P-5/5P M-F/F INLINE


欧时:
Y Distributor,5way,SPEEDCON,M12,2x sckt


艾睿:
Y distributor, 5-position, Plug straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, A-coded and Socket straight M12 SPEEDCON, A-coded, Parallel distributor, Thread M12 socket not rotatable


Allied Electronics:
5 Pole M12 Plug to 10 Pole M12 Socket Adapter, Nickel Plate, 50.1mm


Verical:
Conn Circular Adapter M/F/F 5/5/5 POS Y Style 1 Port


MASTER:
Y distributor - 5-position - Plug straight M12 SPEEDCON - A-coded - on Socket straight M12 SPEEDCON - A-coded and Socket straight M12 SPEEDCON - A-coded - Parallel distributor - Thread M12 socket not rotatable


Online Components:
Conn Circular Adapter M/F/F 5/5/5 POS Y Style 1 Port


Electro Sonic:
Y distributor - 5-position - Plug straight M12 SPEEDCON - A-coded - on Socket straight M12 SPEEDCON - A-coded and ...


1546068中文资料参数规格
技术参数

触点电镀 Gold

额定电流 4 A

绝缘电阻 100 MΩ

额定电流Max 4 A

工作温度Max 90 ℃

工作温度Min -25 ℃

额定电压Max 60 V

额定电压 60 V

接触电阻Max 5 mΩ

外形尺寸

长度 50.1 mm

高度 14.8 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Brass

工作温度 -25℃ ~ 90℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020

数据手册

在线购买1546068
型号: 1546068
描述:M8 and M12 distributor Sensor/ actuator distributor for M8 and M12 plug-in connections ### Phoenix Contact - PLUSCON 现场
替代型号1546068
型号/品牌 代替类型 替代型号对比

1546068

Phoenix 菲尼克斯

当前型号

当前型号

1560086

菲尼克斯

完全替代

1546068和1560086的区别

1514029

菲尼克斯

完全替代

1546068和1514029的区别

TBF36A34PS

ITT电子

功能相似

1546068和TBF36A34PS的区别
