12DC/CHDFA

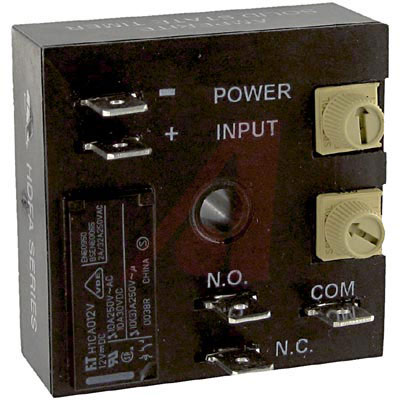

AMPERITE 12DC/CHDFA Time Delay Relay, 30VDC, 0.6 s, 60 s, HDFA Series, SPDT, 10A

The HDFA Series low cost adjustable recycling timers are packaged in the familiar hockey-puck enclosure and may be used to alternately switch power to two independent loads. Both OFF and ON times are independently adjustable by means of built-in potentiometers. Load power is controlled by an isolated SPDT relay contact. Timing ranges are adjustable of a 100:1 span and cover 0.25 seconds to 100 minutes.

.

*Contact Rating:** 10 amperes maximum @ 250 VAC or 30 VDC. **Operating Temperature Range:** –40°C to +65°C. **Mounting:** Single center hole mount. **Timing Cycle Interrupt Transfer:** None.
