1241.7026.1124000概述

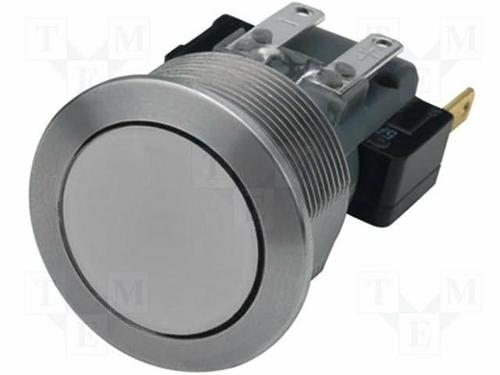

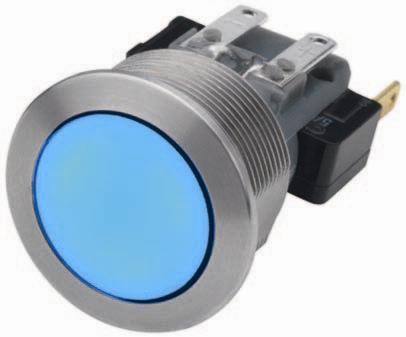

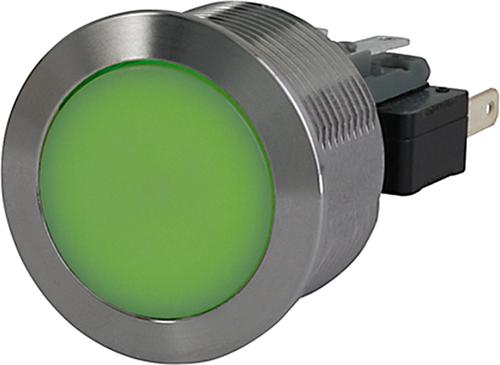

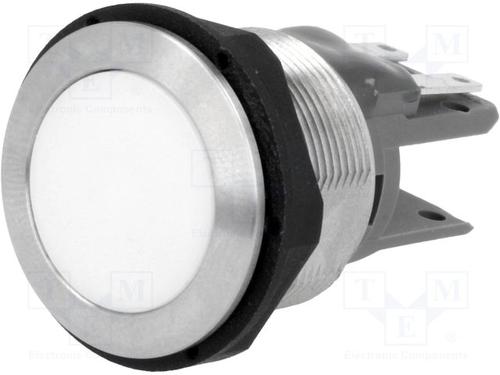

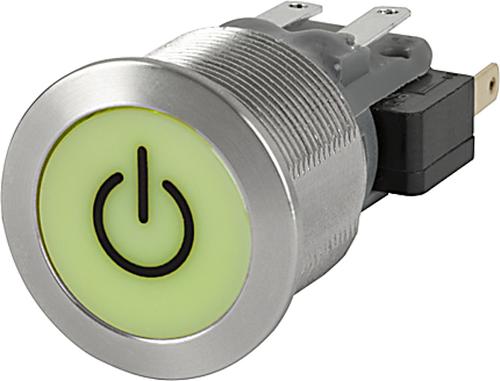

SCHURTER  1241.7026.1124000  防暴开关, MSM CS Series, SPDT, 蓝色, 快速连接, 5 A, 250 V

The MSM CS series Metal Switch with ceramic actuator for use in harsh environments. The switch features high-quality stainless steel housing and highly durable ceramic actuator. The momentary switch is available in standard ST, with lettering LE, with backlighting BL versions.

.
Equipped with flat-pin plugs to permit fast connection
.
Clip micro-switch into the saddle, secure switch using mounting nut assembly
.
Variety of design options regarding size, colour, illumination, connection or lettering
.
Backlighting optional, this means the complete actuator surface is fully illuminated
1241.7026.1124000中文资料参数规格
技术参数

额定电流 5 A

触点类型 SPST

额定电压 125 VAC

封装参数

安装方式 Quick Connect, Panel

封装 Ceramic

外形尺寸

封装 Ceramic

物理参数

触点材质 Silver

工作温度 -20℃ ~ 85℃

外壳材质 Stainless Steel

其他

产品生命周期 Not Recommended for New Design

包装方式 Bulk

制造应用 Safety, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

在线购买1241.7026.1124000
型号: 1241.7026.1124000
制造商: Schurter
描述:SCHURTER  1241.7026.1124000  防暴开关, MSM CS Series, SPDT, 蓝色, 快速连接, 5 A, 250 V
替代型号1241.7026.1124000
型号/品牌 代替类型 替代型号对比

1241.7026.1124000

Schurter

当前型号

当前型号

1241.7026.1121000

Schurter

完全替代

1241.7026.1124000和1241.7026.1121000的区别

1241.7026.1122000

Schurter

完全替代

1241.7026.1124000和1241.7026.1122000的区别

1241.7026.1124074

Schurter

功能相似

1241.7026.1124000和1241.7026.1124074的区别
