1-1986692-1

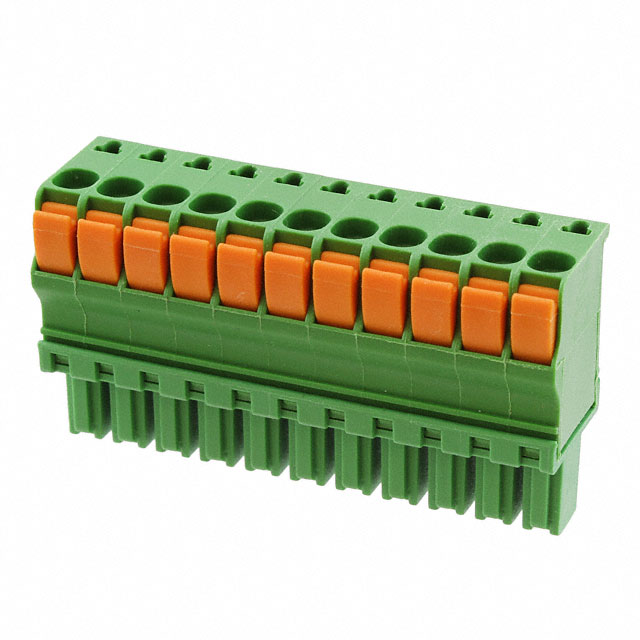

Conn Terminal Block F 11POS 3.5mm ST Cable Mount 11A/Contact Box

11 针位端子块 插头，母插口 0.138"（3.50mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 11POS STR 3.5MM

贸泽:
Pluggable Terminal Blocks 3.5MM R/HAND 11 POS STR SPRING PLG

艾睿:
This 1-1986692-1 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This F connector&s;s 11 contacts that are made out of copper alloy/steel. It has a maximum voltage rating of 300 VAC. It has a female type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.5 mm. 1-1986692-1 is housed in polyamide. This device has a maximum current rating of 11 A/contact. This product is 38.5 mm long, 11.65 mm tall and 20.75 mm deep. Its wire is 14-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 110 °C.

安富利:
STR PLUG SPRING TYPE RH 11P, 3.50MM

Newark:
# AMP - TE CONNECTIVITY  1-1986692-1  STR PLUG SPRING TYPE RH 11P, 3.50MM New

MASTER:
STRAIGHT SPRING TYPE PLUG CONNECTOR SIDE STACKABLE RIGHT 02 - 25 POLES PITCH 3.5

Online Components:
STR PLUG SPRING TYPE RH 11P, 3.50mm

Electro Sonic:
STR PLUG SPRING TYPE RH 11P, 3.50mm
