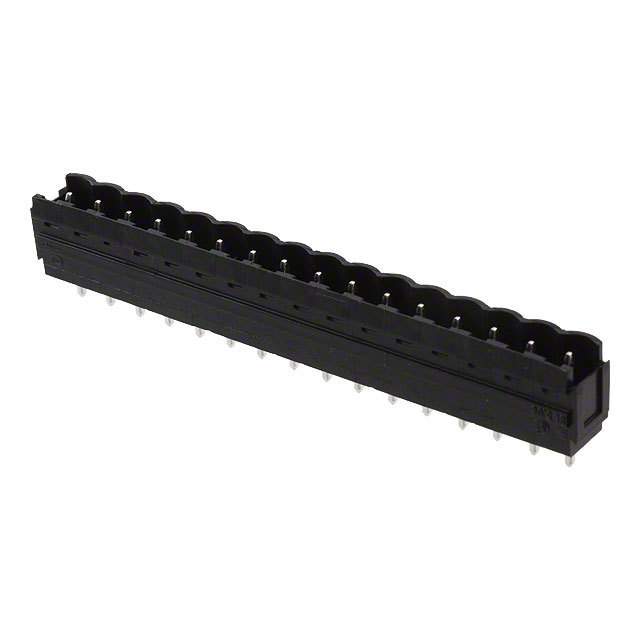

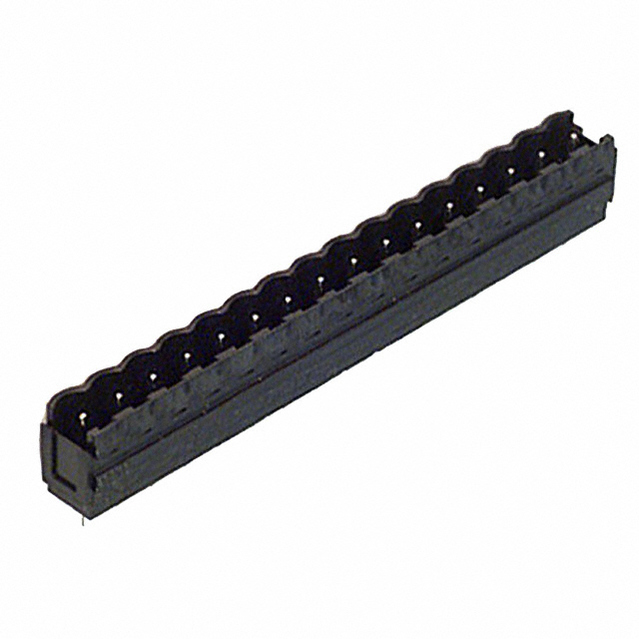

WEIDMULLER 1525510000 Terminal Block, Header, 5.08mm, 16Positions, 10A, 300V, Through Hole Vertical
Conn Wire to Board HDR 16 POS 5.08mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 16POS VERT 5.08MM
安富利:
Conn Wire to Board HDR 16 POS 5.08mm Solder ST Thru-Hole
Newark:
# WEIDMULLER 1525510000 Terminal Block, Header, 5.08 mm, 16 Positions, 10 A, 300 V, Through Hole Vertical
MASTER:
Conn Wire to Board HDR 16 POS 5.08mm Solder ST Thru-Hole Box
Online Components:
Conn Wire to Board HDR 16 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
Conn Wire to Board HDR 16 POS 5.08mm Solder ST Thru-Hole Box
触点数 16
极性 Male
触点电镀 Tin
额定电流 15.0 A
绝缘电阻 1.00 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 16
安装角度 180 °
额定电流Max 15 A
额定电压Max 300 V
安装方式 Through Hole
引脚间距 5.08 mm
宽度 8.50 mm
高度 12.0 mm
引脚间距 5.08 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -20℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
