1986300-6

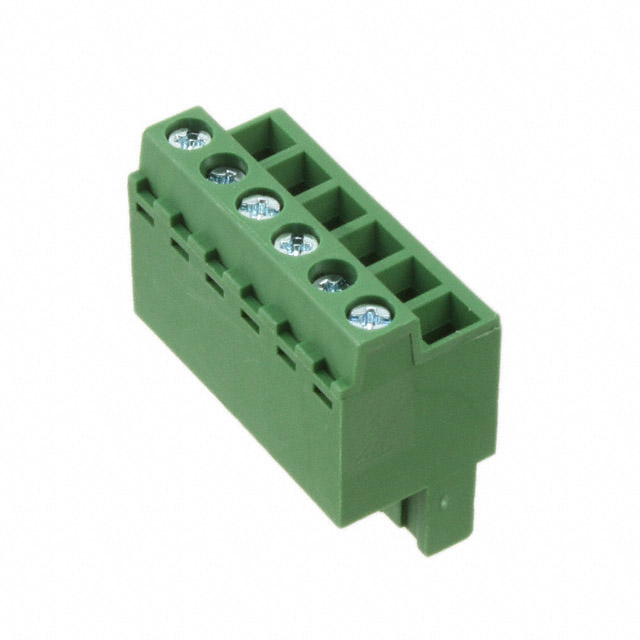

TE CONNECTIVITY 1986300-6 Pluggable Terminal Block, 5mm, 6Positions, 24AWG, 14AWG, 2mm², Screw

The key feature of the front style terminal block plug is that the wire entry cavity and the activating screw head are on the same plane which is parallel to the plug in direction. These plugs in particular are being released with 5.0mm and 5.08mm centerline spacing and will mate to industry standard vertical and right angle headers.

得捷:
TERM BLOCK PLUG 6POS STR 5MM

艾睿:
Ideal for testing purposes this eurostyle block 1986300-6 PCB terminal block manufactured from TE Connectivity will exceed your needs. This PL connector&s;s 6 contacts that are made out of phosphor bronze/steel and plated with tin/zinc. It has a plug type gender. It has a maximum voltage rating of 300 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. 1986300-6 is housed in polyamide 6/6. This device has a maximum current rating of 16 A/contact. Its wire is 14-24 AWG. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 30 mm long, 14.9 mm tall and 27.1 mm deep.

Allied Electronics:
Conn; Term Blk; Plug; Front; 6; 5 mm; 24-14 AWG; 16 A; 300 V

Verical:
Conn Eurostyle Block PL 6 POS 5mm Screw ST Cable Mount 16A/Contact

Newark:
# TE CONNECTIVITY  1986300-6  Pluggable Terminal Block, 5 mm, 6 Positions, 24 AWG, 14 AWG, 2 mm², Screw

MASTER:
Plug, 5.0mm, Gn, Sws & WE same side, p 6

Powell:
Pluggable Terminal Blocks FrtStyle Trm Blk Plg 5mm 6 POS

Online Components:
Plug, 5.0mm, Gn, Sws & WE same side, p 6

Electro Sonic:
Plug, 5.0mm, Gn, Sws & WE same side, p 6
