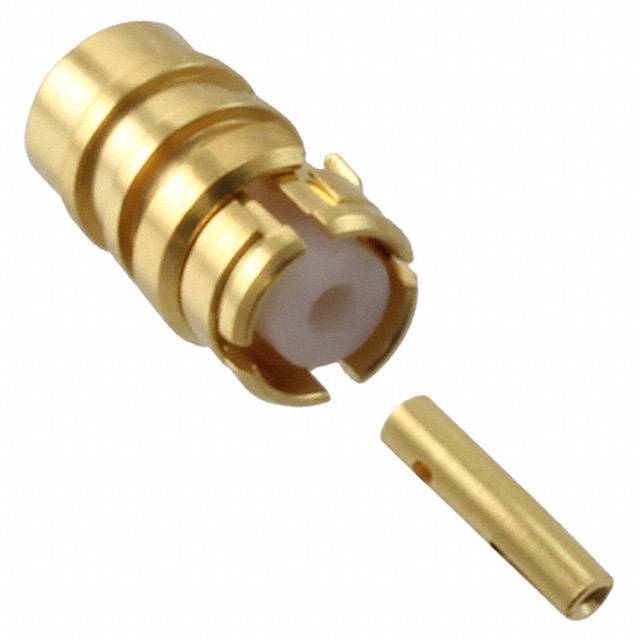

AMP FROM TE CONNECTIVITY 1056527-1 射频/同轴连接器, OSMP
SMP 插孔,母形插口 50 欧姆 自由悬挂 焊接
得捷:
CONN SMP JACK STR 50 OHM SOLDER
e络盟:
AMP FROM TE CONNECTIVITY 1056527-1 射频/同轴连接器, OSMP
艾睿:
The osmp 1056527-1 RF connector from TE Connectivity will make sure your RF components are shielded properly when connected. It has a receptacle type gender. It has a straight body orientation. It has an operating frequency of 0 to 40G Hz. This rf connector has an operating temperature of -65 to 165 °C. This product is 6.35 mm long with a diameter of 3.38 mm. It uses the solder termination method.
安富利:
Conn OSMP RCP 0Hz to 40GHz 50Ohm Solder ST Cable Mount Gold
Chip1Stop:
Conn OSMP RCP 0Hz to 40GHz 50Ohm Solder ST Cable Mount Gold
Verical:
Conn OSMP 0Hz to 40GHz 50Ohm Solder ST Cable Mount RCP Gold Carton
Newark:
# AMP - TE CONNECTIVITY 1056527-1 RF / Coaxial Connector, SMP Coaxial, Straight Jack, Solder, 50 ohm, RG405, Beryllium Copper
MASTER:
OSMP STRAIGHT CABLE JACK DIRECT SOLDER ATTACHMENT
Powell:
SMP/SMPM RF Connectors
Online Components:
2902 7985 62
Electro Sonic:
2902 7985 62
触点电镀 Gold
绝缘电阻 5000 MΩ
拔插次数 100
工作温度Max 165 ℃
工作温度Min -65 ℃
额定电压 335 V
安装方式 Solder
长度 6.35 mm
外壳颜色 Gold
触点材质 Beryllium Copper
介质材料 Tetrafluoroethylene TFE
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694010
