1-225092-1

1-225092-1图片1
1-225092-1图片2
1-225092-1图片3
1-225092-1图片4

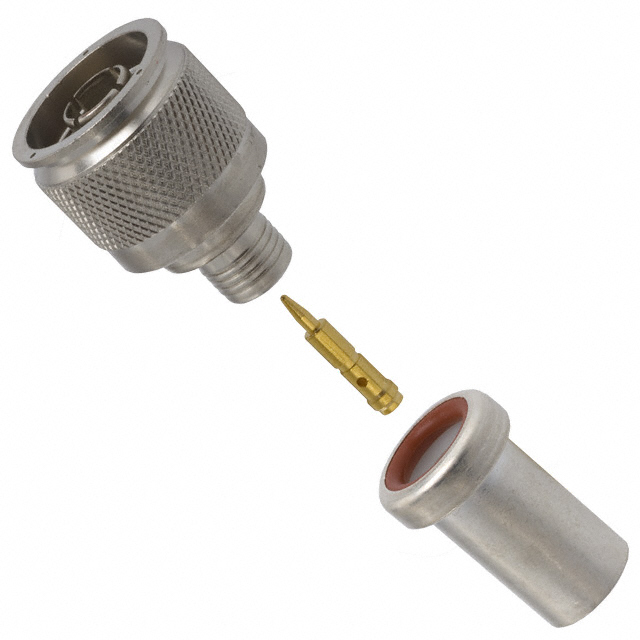

1-225092-1图片5
1-225092-1图片6
1-225092-1概述

Conn Type N PL 50Ω Crimp ST Cable Mount Gold

N Type Connector Plug, Male Pin 50Ohm Free Hanging In-Line Crimp


得捷:
CONN N PLUG STR 50 OHM CRIMP


艾睿:
Ideal for any cable need, this type n 1-225092-1 RF connector from TE Connectivity will bring a strong connection to your transmission line so you do not have to worry again. This connector&s;s body is plated in silver. It has a plug type gender. It has a straight body orientation. It uses the crimp termination method. This product is 47.22 mm long with a diameter of 21.01 mm.


安富利:
Conn Type N PL 50Ohm Crimp ST Cable Mount Gold


Chip1Stop:
Conn Type N PL 50Ohm Crimp ST Cable Mount Gold


Newark:
# AMP - TE CONNECTIVITY  1-225092-1  RF / Coaxial Connector, N Type, Straight Plug, Crimp, 50 ohm, RG393


Powell:
N Series RF Connectors


1-225092-1中文资料参数规格
技术参数

极性 Male

触点电镀 Gold

工作温度Max 165 ℃

工作温度Min -65 ℃

外形尺寸

长度 47.22 mm

物理参数

外壳颜色 Silver

触点材质 Brass

介质材料 Teflon

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

ELV标准 Compliant

数据手册

在线购买1-225092-1
型号: 1-225092-1
描述:Conn Type N PL 50Ω Crimp ST Cable Mount Gold
